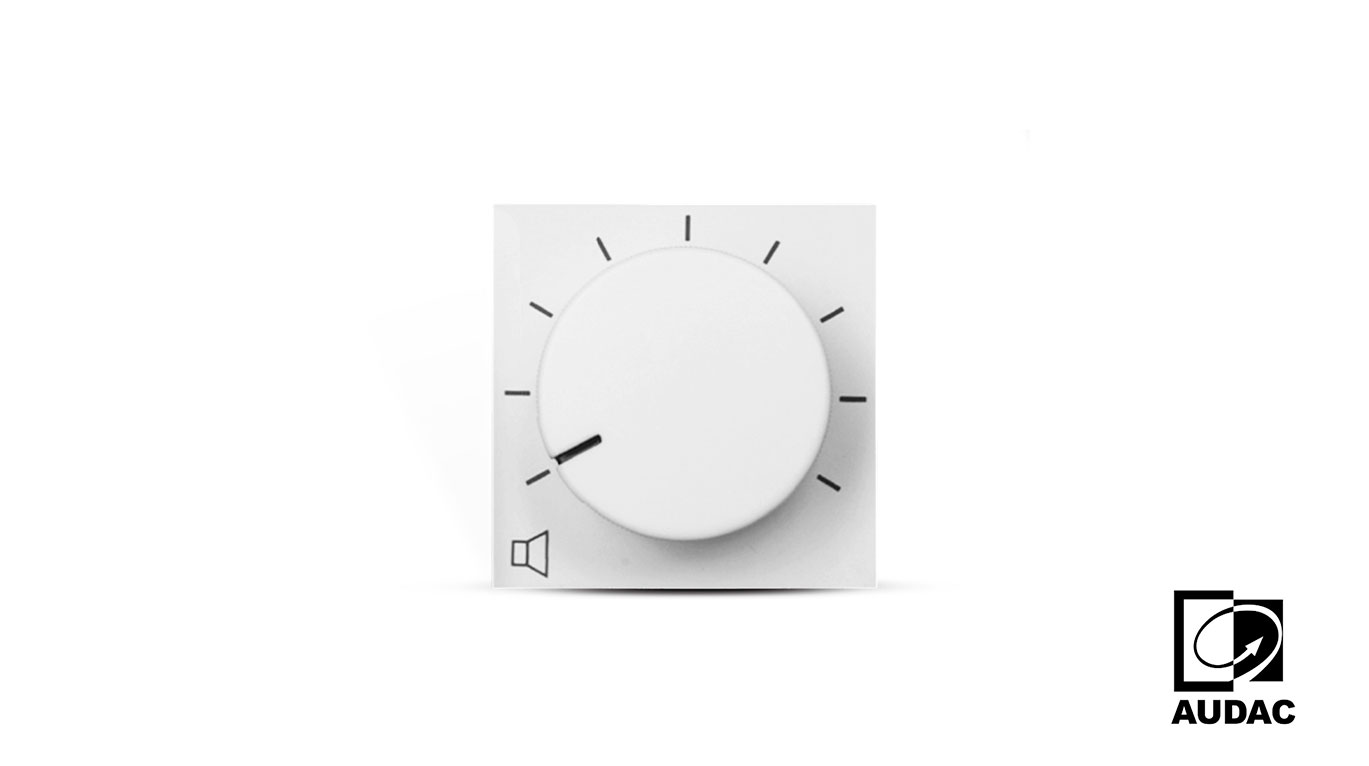

The VC4036 is a flush mount wall volume controllers for 100V PA installations. It is compatible with bTicino installation materials. The volume is adjustable with a rotatable dial in ten steps of 3 dB and the maximum power rating is 36 Watt. A built-in relay makes it possible to build priority circuits between several controllers.
AUDAC VC4036W VOL CONTROL BTCINO WHITE
Original price was: €54.€39.80Current price is: €39.80.
In stock
In stock
Description
Applications:
• Corporate
• Residential
Technical Specifications
System specifications
| Program power handling | 36 W |
| RMS/AES power handling | 36 W |
| Max. operation Voltage | 100 V |
| Attenuation | 9 x 3 dB |
| Relay | 24 V / 25 mA |
Product Features
| Dimensions | 43 x 43 x 60 mm (W x H x D) | |
| Weight | 0.150 kg | |
| Construction | ABS | |
| Mounting | 43 x 43 mm (bTicino) | |
| Accessories | Optional | CP45CF1 Cover frame |
| CP45CF2 Cover frame | ||
Additional information
| Brand | Audac |
|---|---|
| Product Type | Wall Controllers |
| Colour | White |
