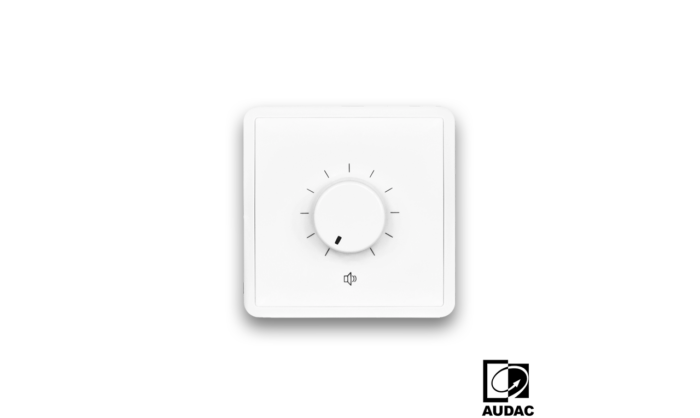

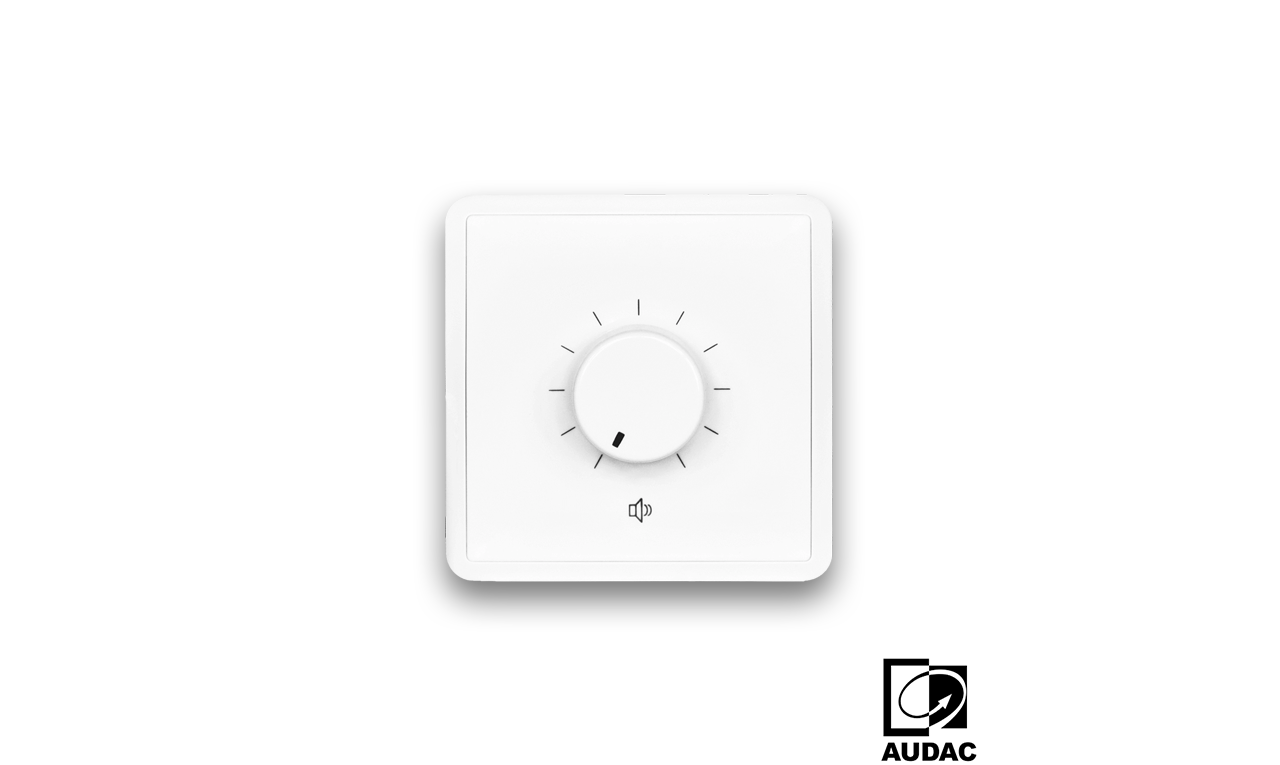

Audac VC3022 – 100V Volume Controller

28.60

The VC3xx2 Series are 100 Volt wall volume controllers whereby the volume for 100 V loudspeakers can be adjusted in 11 steps of 3 dB.

100V volume controller 20W 80 x 80 mm

SEND EMAIL QUERY

Description

The VC3xx2 Series are 100 Volt wall volume controllers whereby the volume for 100 V loudspeakers can be adjusted in 11 steps of 3 dB. They feature a slim and good looking design and are constructed out of sturdy ABS, making them suitable for big projects in industrial environments as well as standard home interiors. An integrated 24 Volt relay allows bypassing of the volume controller in priority situations, making sure the message is always clearly heard at maximum volume. Connections are made using screw terminal blocks, and flush and surface mount boxes (WB3102) are separately available.



Technical Specifications

Available Models
VC3022/W100v wall volume controller

System Specifications
Peak power handling40W
Program power handling20W
Max. operation voltage 100V
Attenuation11 x 3 dB
Priority relay24V / 25mA

Product features
Dimensions80 x 80 x 50 mm (W x H x D)
Built-in depth46 mm
Weight0.100 kg
ConstructionABS
Colours White
Accessories OptionalWB3102/FS Flush mount wall box
 WB3102/SW Surface mount wall box

Recommended ApplicationsCorporate
 Residential
