Audac Outdoor music system X2 speakers White

355

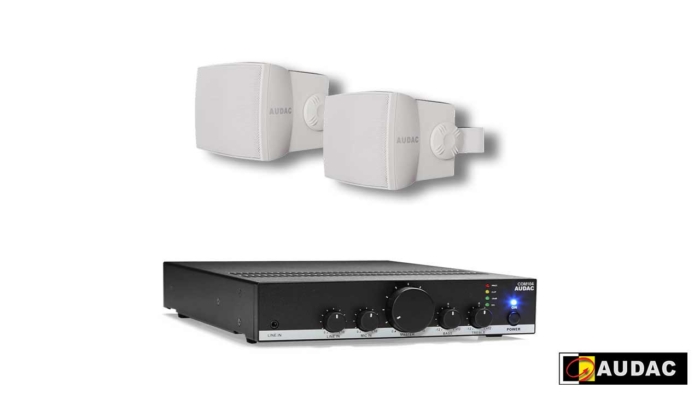

Audac COM104 Amplifier & 2 Audac WX502/0 Outdoor Speakers. Price is for amp and 2 speakers.

Description

Audac COM104 Compact versatile Amplifier

The COM104 is a compact but versatile public address mixing amplifier which offers solutions for small to medium size audio systems in commercial installations. Typical application are background music systems in retail stores, bars, restaurants and office buildings.

The compact and simple design allows installation in any location and operation through any possible user.

The amplifier is designed using Class-D amplifier technology and delivers an output power of 40 Watt to constant voltage (100V and 70V) or low impedance (4 Ohm) audio systems. A switch mode power supply allows compatibility with a wide variation of mains voltages for global compatibility.

A stereo line input allows connection for a wide variation of audio sources such as media players, radio tuners, internet audio players, … and many more. A balanced mic/line input allows connection for an announcement microphone with compatibility for condenser microphones using the integrated phantom power supply (15V). A priority switch overrides the background music when enabled, and compatibility with voice file players is guaranteed by the wide gain adjustment possibility (0 dB – +50 dB).

The COM104 is a table-top standing device, while rack mounting in 10.5″ or 19″ equipment racks is possible using an optionally available mounting set (MBS310).

SYSTEM SPECIFICATIONS
Signal / Noise> 90 dB
THD+N (@ 1 kHz)< 0.5% (1/2 Rated Power)
Crosstalk (@ 1 kHz)> 70 dB
TechnologyClass-D
InputsPriority mute contact
CoolingConvection cooled
Operating temperature0° ~ 40° @ 95% Humidity
FrequencyResponse (± 3 dB)20 Hz – 20 kHz
PowerSupplySwitching mode
OutputsConnector4-pin Euro Terminal Block (Pitch – 5.08 mm)
 Voltage / Impedance100/ 70 V / 4 Ω
ProtectionAmplifierDC Short circuit
  Over heating
  Over load
  Signal limiting
InputsBalanced MicrophoneSensitivity (1W/1m)-0 dB ~ +50 dB
  Connector3-pin Euro Terminal Block (Pitch – 3.81 mm)
  Type1 x Balanced Microphone
 Unbalanced StereoType1 x Stereo Unbalanced Line
  ConnectorRCA / 3.5 mm Jack
  Sensitivity (1W/1m)-4 dB ~ +20 dB
PowerSupplyOperating100 ~ 240 V AC / 50 ~ 60 Hz
InputsBalanced MicrophonePhantom Power15 V DC
RMS Power@ 4 Ω1 x 40 W
PRODUCT FEATURES
Dimensions217.5 x 43.7 x 300 mm (W x H x D)
Weight3 kg
Mounting1/2 19” / 1 HE or tabletop
ConstructionSteel
ColoursBlack
AccessoriesOptional19” Rackmount adapter

Audac WX502/O Outdoor Wall Speakers

The WX502/O is a powerful 2-way performance speaker which is especially designed for outdoor use, ensuring true-to-nature, high fidelity reproduction of music and speech. It is fitted with an 1” dome tweeter and a 5 1/4” low frequency loudspeaker, capable of delivering a power of 50 Watt. It can be used in standard 8 Ohm systems but also in 100V PA systems with power taps for 40 Watt, 20 Watt and 10 Watt. Unlike the standard WX502, this version is specially treated for outdoor use. A special treatment with powder coating provides the necessary protection for all weather conditions. Because of this, the brackets can pass the 96 hours salt-spray test. A drain hole behind the aluminum grill allows water to flow out and the rotatable 5 pole waterproof connector with power tap selection makes sure that the speaker meets the IP55 standard. The included mounting bracket allows horizontal and vertical mounting as well as focusing of the speaker, and an integrated advanced protection network protects the tweeter against overload. The WX502/O has an Ingress Protection rating of 55.

VARIANTS

WX502/OB – Black version
WX502/OW – White version

Speakers can be white or black and clients can add additional speakers (up to 4 in total) to this system as requested.

SYSTEM SPECIFICATIONS
Speaker type2-way
Max. Power100 W
RMS Power50 W
Impedance8 Ω
Sensitivity (1W/1m)87 dB
Ingress Protection ratingIP55
ConnectorsWaterproof AWX-5 connector
Line Transformer Tappings140 W / 250 Ω
 220 W / 500 Ω
 310 W / 1000 Ω
Sound Pressure (Max. W/1m)@ 8 Ω104 dB
 @ 100 V102 dB
FrequencyResponse (± 3 dB)70 Hz – 18 kHz
 Range (-10 dB)55 Hz – 20 kHz
CrossoverFrequency2.5 kHz
 TypePassive built-in
DispersionHorizontal110°
 Vertical110°
DriversHF1”
 LF5”
PRODUCT FEATURES
Dimensions212 x 147 x 136 mm (W x H x D)
Weight2.540 kg
Operating temperature-25 °C ~ 70 °C
ConstructionABS
Mounting & handlingMounting bracket
Front finishAluminium grill
ColoursBlack (RAL9005) (WX502/OB)
 White (RAL9003) (WX502/OW)
AccessoriesIncludedMounting bracket
  5-pin connection cable (70 cm)
 OptionalAU570120005 – 5-pin cable 0.5 m
  AU570120025 – 5-pin cable 2.5 m
  AU570120050 – 5-pin cable 5 m

Additional information

Brand

Audac

Amplifier Connectivity

Aux-In, 100V, Microphone In

System Configuration

2 Speakers

Speaker Type

Water Resistant
