Audac KYRA24 – Speaker

Call for price

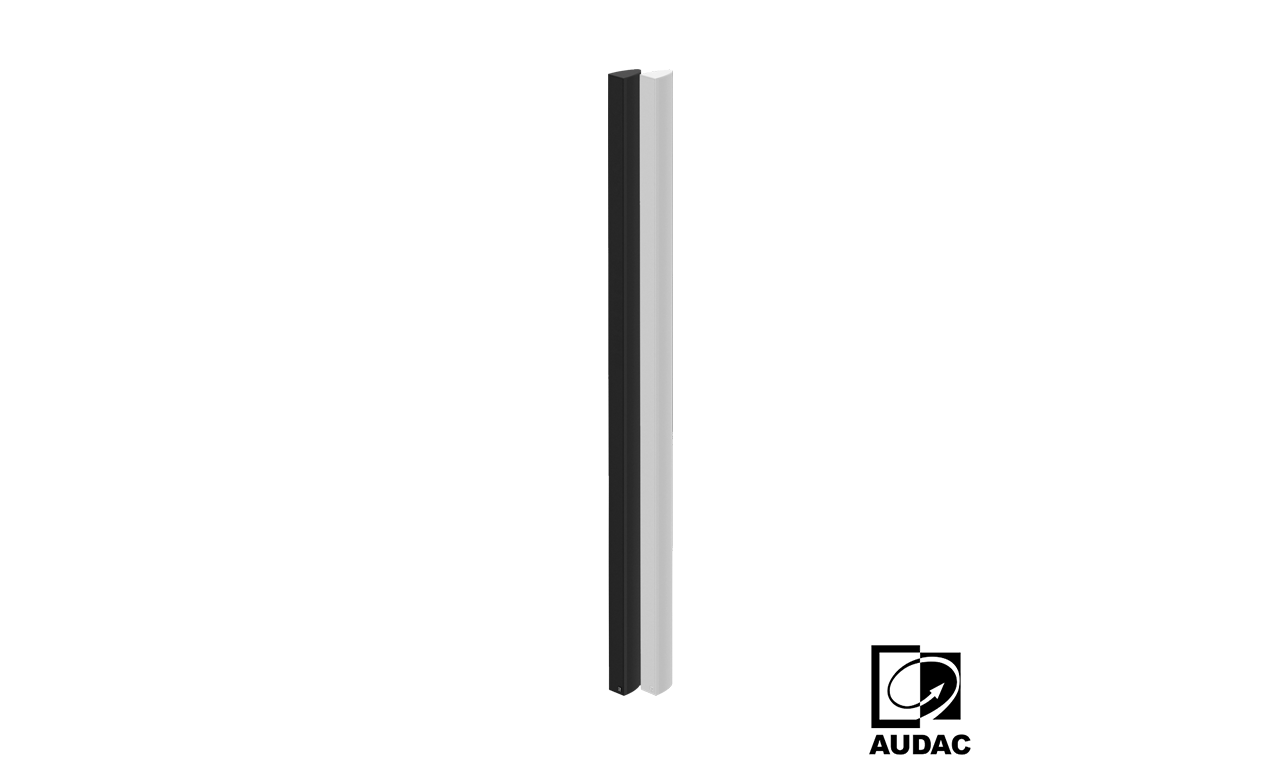

The KYRA24 design column speaker consists of 24 x 2” high-quality aluminum cone full-range drivers, delivering extraordinary clarity and detailed sound.

Design column speaker 24 x 2″

  • Multi-functional wall bracket allowing swiveling and down-tilting
  • Slimline aluminum design
  • 24 x 2″ high-quality broadband speakers
SEND EMAIL QUERY

Description

KYRA SERIES

Overcome acoustical challenges.

The elegant and qualitative result of research in the field of phased array acoustics, providing extraordinary detail and clarity for music and speech in challenging applications.



The KYRA24 design column speaker consists of 24 x 2” high-quality aluminum cone full-range drivers, delivering extraordinary clarity and detailed sound. The overall continuous power handling reaches 240 Watt and the beamwidth of 174° x 7° (-6 dB avg 1 kHz – 4 kHz)* makes it the perfect match for acoustically difficult venues, reducing echo and microphone feedback which optimizes the speech intelligibility in reverberant venues.

The overall impedance of the speaker measures 4Ω, allowing it to be implemented in any low impedance audio system.

*Given dispersion values are the average beamwidth within the 1 kHz – 4 kHz frequency range (-6 dB – 1/3 oct), which are critical for the speech intelligibility in the main application field of these loudspeakers.

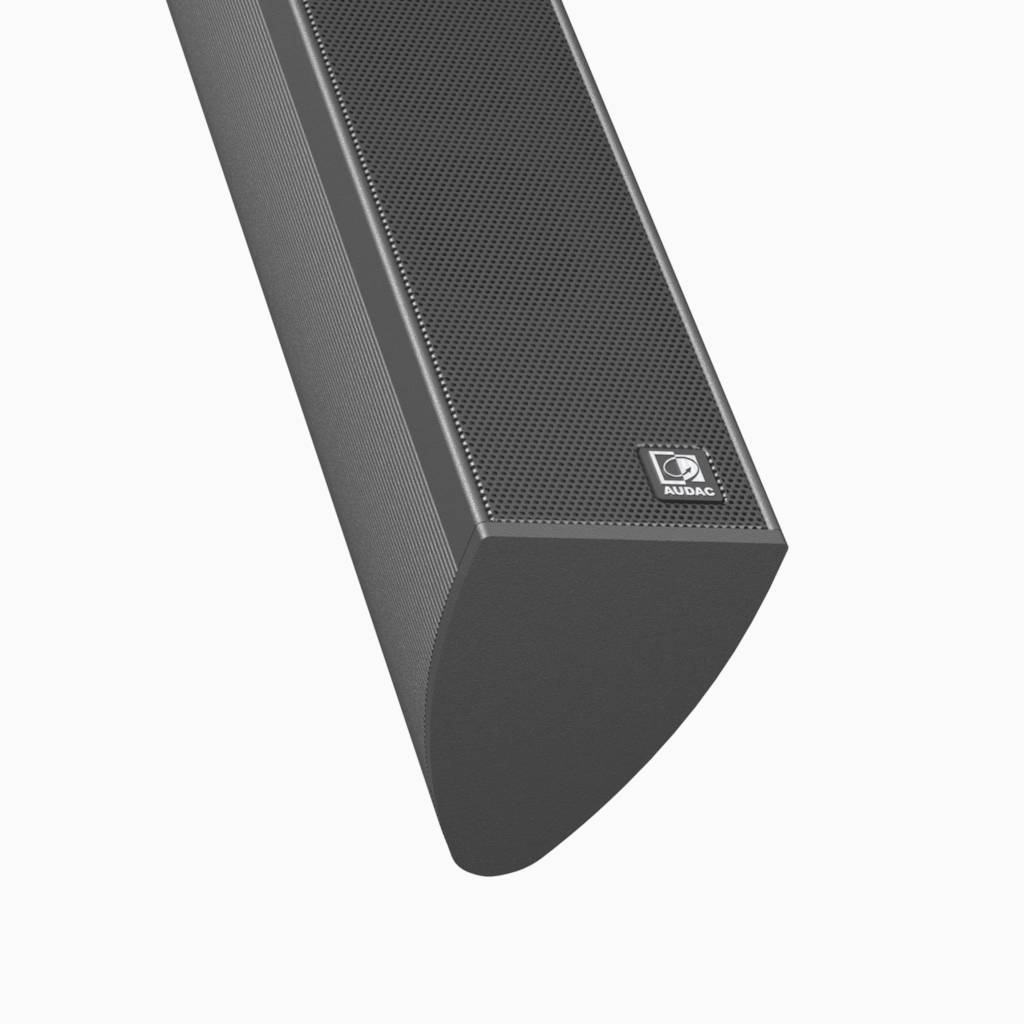

GREAT DURABILITY

Only the highest quality materials

The KYRA column speakers are housed in slim and elegantly constructed enclosures made out of aluminum and finished with finely perforated grills.

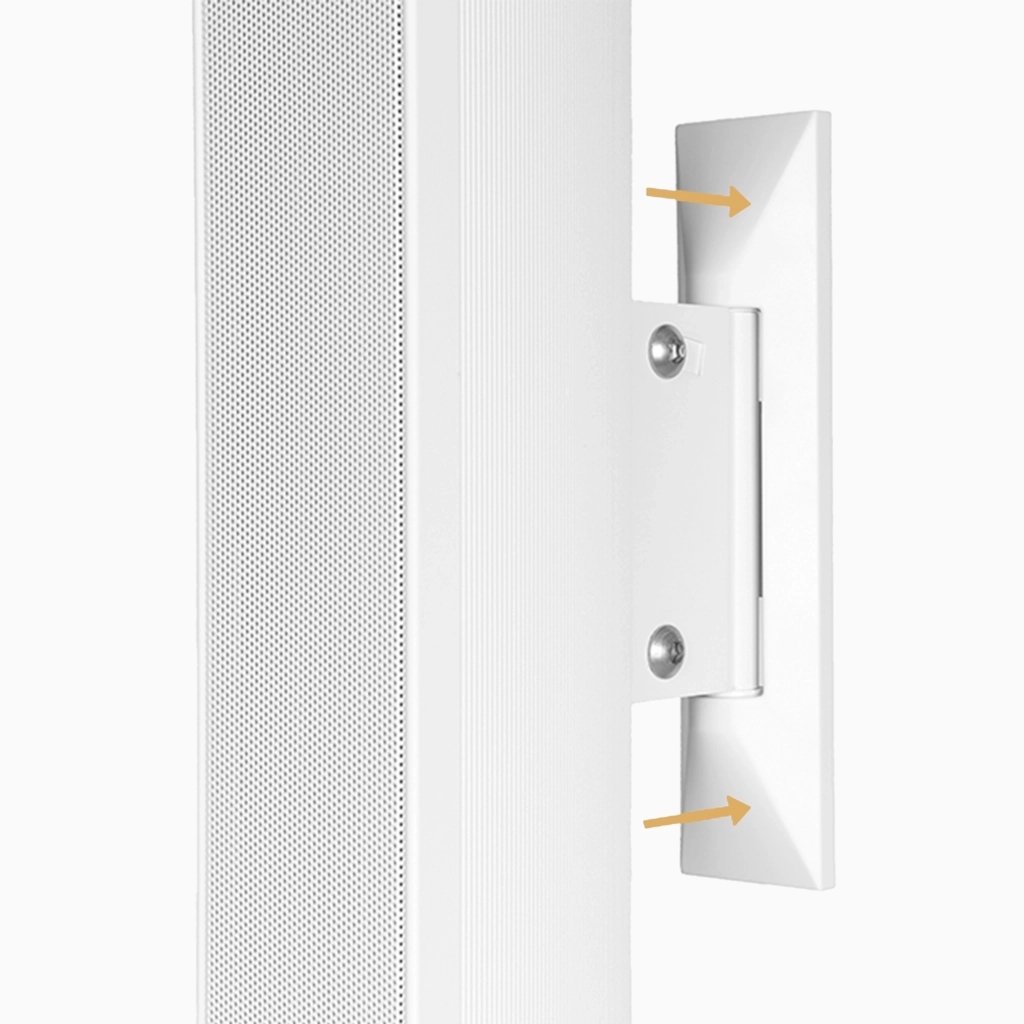

EASY SWIVELLING AND DOWN-TILTING

Advanced mounting possibilities

An included mounting bracket allows easy swivelling and down-tilting. The renewed bracket ensures that the distance from the wall mounting surface to the front of the loudspeaker is only 147mm, which is 22mm less than the previous version, allowing the column loudspeaker to blend even more esthetically into its surroundings.

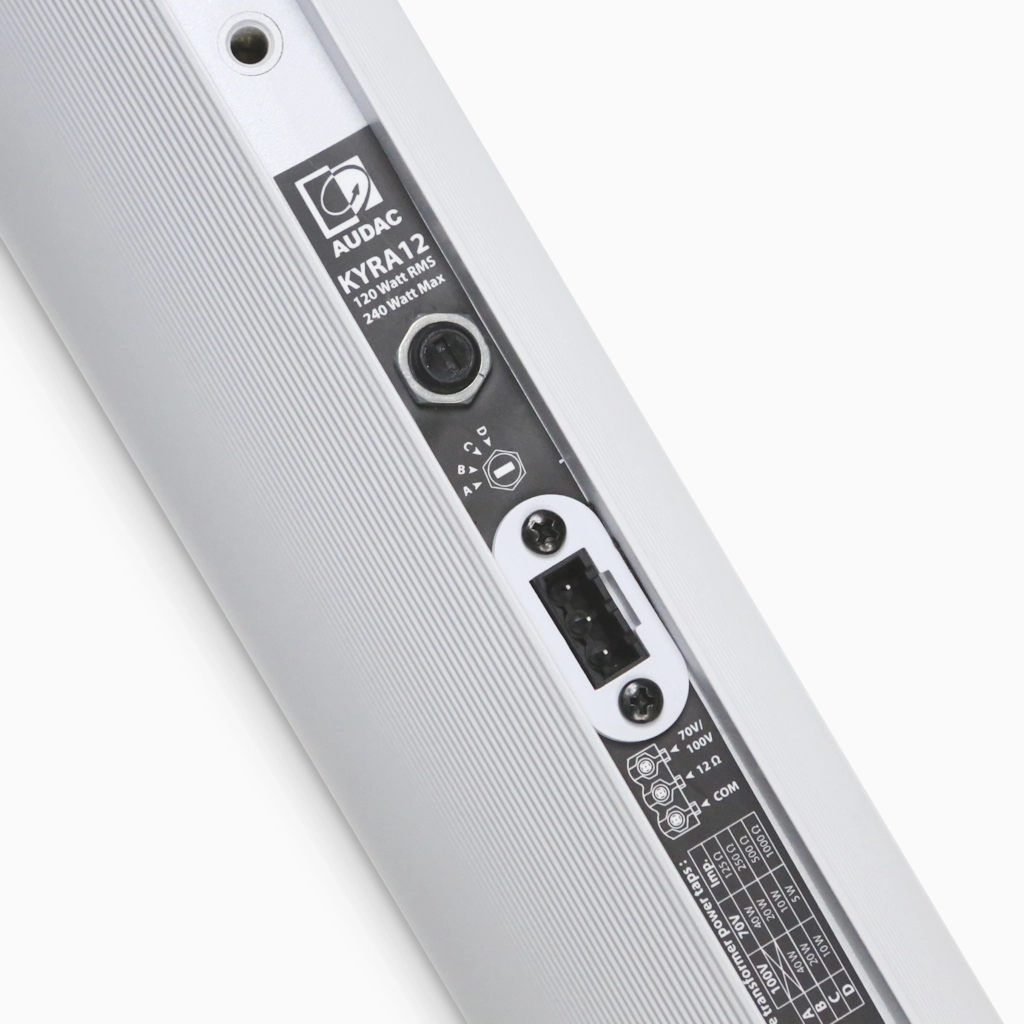

70/100V APPLICATIONS

Plug-and-play multi-tapping

The power tapping switch of the KYRA’s indoor versions has been moved to the back of the speaker, allowing you to easily choose the right power tapping for the right 70V/100V application without removing the grill.

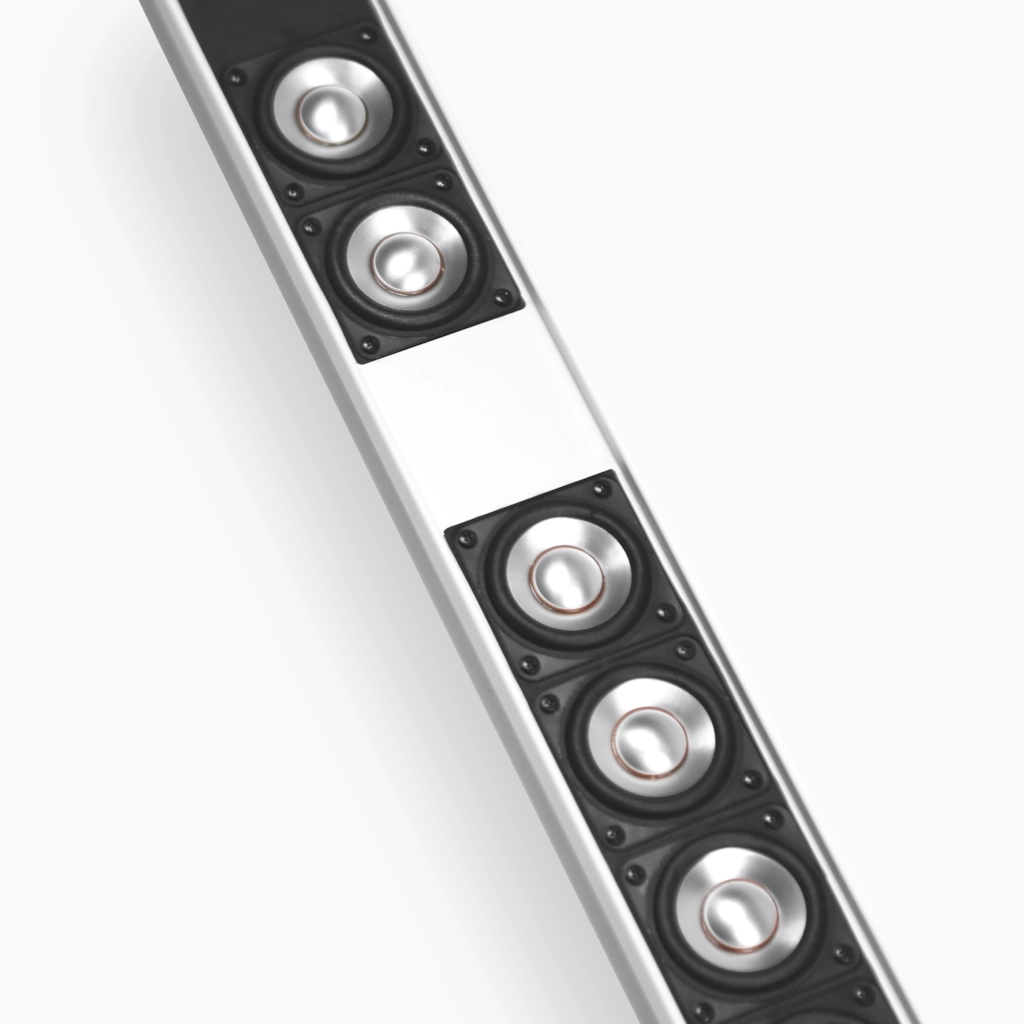

OPTIMIZED SPEAKER DRIVER PLACEMENT

Impressive coverage area

The improved 2″ drivers of the KYRA series are repositioned to provide an optimized coverage area.



Technical Specifications

Available Models
 KYRA24/BBlack Version
 KYRA24/WWhite Version

System Specifications
Speaker Type  Broadband column
Peak power handling 960W
Program power handling 480W
RMS/AES power handling 240W
Impedance
Sensitivity (1W/1m) 92 dB
Sound Pressure (Max. W/1m) 113 dB
FrequencyRange (-10 dB)120 Hz – 20 kHz
 Response (± 3 dB)150 Hz – 20 kHz
Drivers 24 x 2”
Ingress Protection rating IP3x
TemperatureOperating-20 – +50 °C
Incline angleLeft42°
 Right42°
 Bottom13°
DispersionHorizontal174° (-6 dB avg 1 kHz – 4 kHz)
 Vertical7° (-6 dB avg 1 kHz – 4 kHz)
Product Features
Dimensions  70 x 2006 x 101 mm (W x H x D)
ColoursBlack (KYRA24/B – RAL9005)
  White (KYRA24/W – RAL9003)
Front finish Steel grill
Construction Aluminum with plastic side covers
AccessoriesIncluded1 x 3-pin Euro Terminal Block Input connectors
  2-way Revolving mounting bracket
Recommended Applications
  Education
  Corporate
  House of Worship
  Events
