Audac FMP40


Call for availability

Audac professional FMP40 is a voice file media player featuring SourceCon modular technology.

Call for availability



Audac FMP40 voice file media player module – Doneo Malta

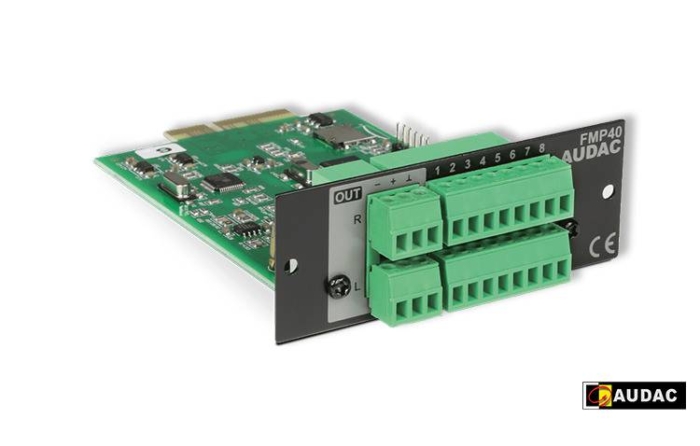

The FMP40 is a professional voice file media player featuring SourceCon™ modular technology.

This unique technology guarantees true plug & play implementation to any compatible device. When inserted to a supporting slot, the module is instantly installed, discovered and ready for operation without requiring any additional internal wiring or complex configuration. The FMP40 features 50 programmable (timer and/or contact) triggers which can be used for triggering music / voice file messages stored on various types of media carriers. Media playback from USB storage drives is possible when inserted to the controlling device, while an internal Micro SD card slot safely locks the carrier inside for applications where frequent media changes are not required. Media playback is supported in MP3, WMA, WAV, FLAC, OGG and AAC filetypes with numerous supported bitrates. Each of the 15 contact is individually configurable, offering selection for the triggered media file and normal open (NO) or normal closed (NC) contact operation. The playback mode can be selected between pulse trigger (play complete track) or stop on release.

Event triggering allows triggering at pre-defined moments. Other settings such as priority level assignment and repeat are making the FMP40 a complete and versatile solution for any application requiring voice file playback, ranging from advertisements and announcements to emergency calls.

Connection SourceCon™ interface card slot
Compatible filesystems FAT16
THD+N (@ 1 kHz) < 0.07%
Crosstalk (@ 1 kHz) 80 dB
Inputs Type 15 trigger contact inputs (NO or NC)
Connector 2 x 8-pin Euro Terminal Block (Pitch – 3.81 mm)
Outputs Type Balanced stereo line outputs
Connector 3-pin Euro Terminal Block (Pitch – 3.81 mm)
Level +8 dB ~ -91 dB
Compatible media Playback USB memory
USB HDD (external)
Micro SD card (internal)
Supported filetypes Playback MP3
Ogg Vorbis
Power Consumption 1 W
Product features
Dimensions 87 x 34.5 x 114 mm (W x H x D)
Weight 0.079 kg
Mounting SourceCon™ interface card slot
