Audac CEP408 – Amplifier

833.50

In stock

The CEP series are professional 70/100V multi-channel energy-efficient amplifiers. The one unit height device comes into two models. The CEP408 offers four channels and has an output power of 80 Watt. Both low impedance as 70/100V, deliver high-quality amplification distributed over multiple zones in various applications.

Quad channel 4 Ohm energy-efficient amplifier – 4 x 80W

  • Energy star certified
  • Terminal block input connections
  • Terminal block output connections
  • Input linking through miniature switches
  • Compact and lightweight design
  • Class-D amplifier technology

In stock

Description

The CEP series are professional 70/100V multi-channel energy-efficient amplifiers. The one unit height device comes into two models. The CEP408 offers four channels and has an output power of 80 Watt. Both low impedance as 70/100V, deliver high-quality amplification distributed over multiple zones in various applications. With its compact and lightweight design, the CEP series is designed with high efficiency and reliability by providing input linking through miniature switches at the back of the device in combination with Class-D amplifier technology. These switches allow daisy linking inputs from one channel to another by simply pressing the switch.

The highly efficient Class-D amplifier technology delivers an uncompromised sound experience in the most effective way. The input connections are performed with 3-Pin Terminal block connectors while the output connections are performed with a 4-pin Terminal block connector.

The multi-channel amplifier is Energy Star compliant yet can be enabled or disabled with a standby switch on the back of the device. This amplifier is an HE (1RU) 19” unit. In order to ensure maximum installer/maintenance convenience, the CEP is passively cooled.

less-energy

ENERGY STAR CERTIFIED

Same power, less energy usage

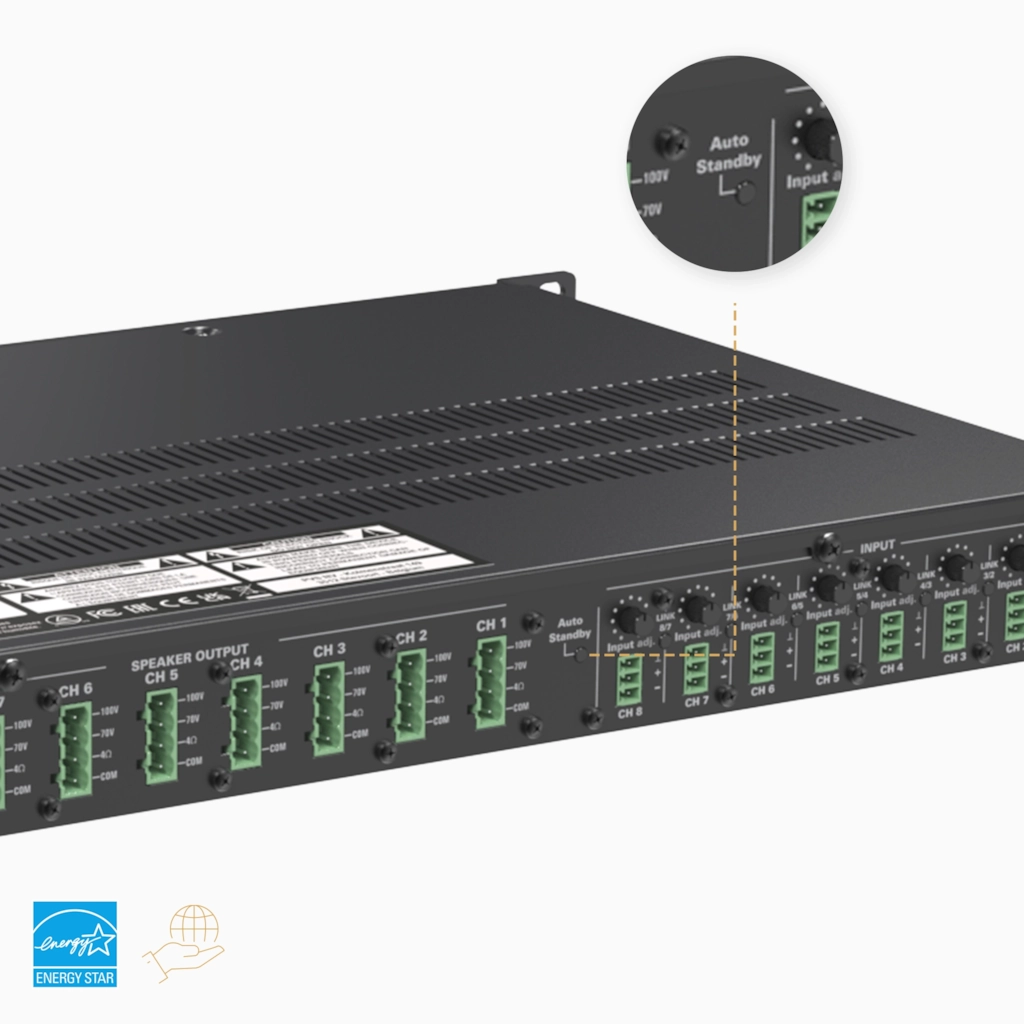

The highly efficient Class-D amplifier technology delivers an uncompromised sound experience in the most effective way. Miniature switches at the back allow you to daisy link inputs from one channel to another by just a single press on the switch.



silent-passive

A QUIET SOLUTION

Silent passive cooling

In order to reach maximum installer and maintenance convenience all CEP series devices are fully passively cooled. This is an energy-efficient and silent solution for its cooling needs

g
uncompromised-sound-experience

USER-FRIENDLY SETUP

Uncompromised sound experience

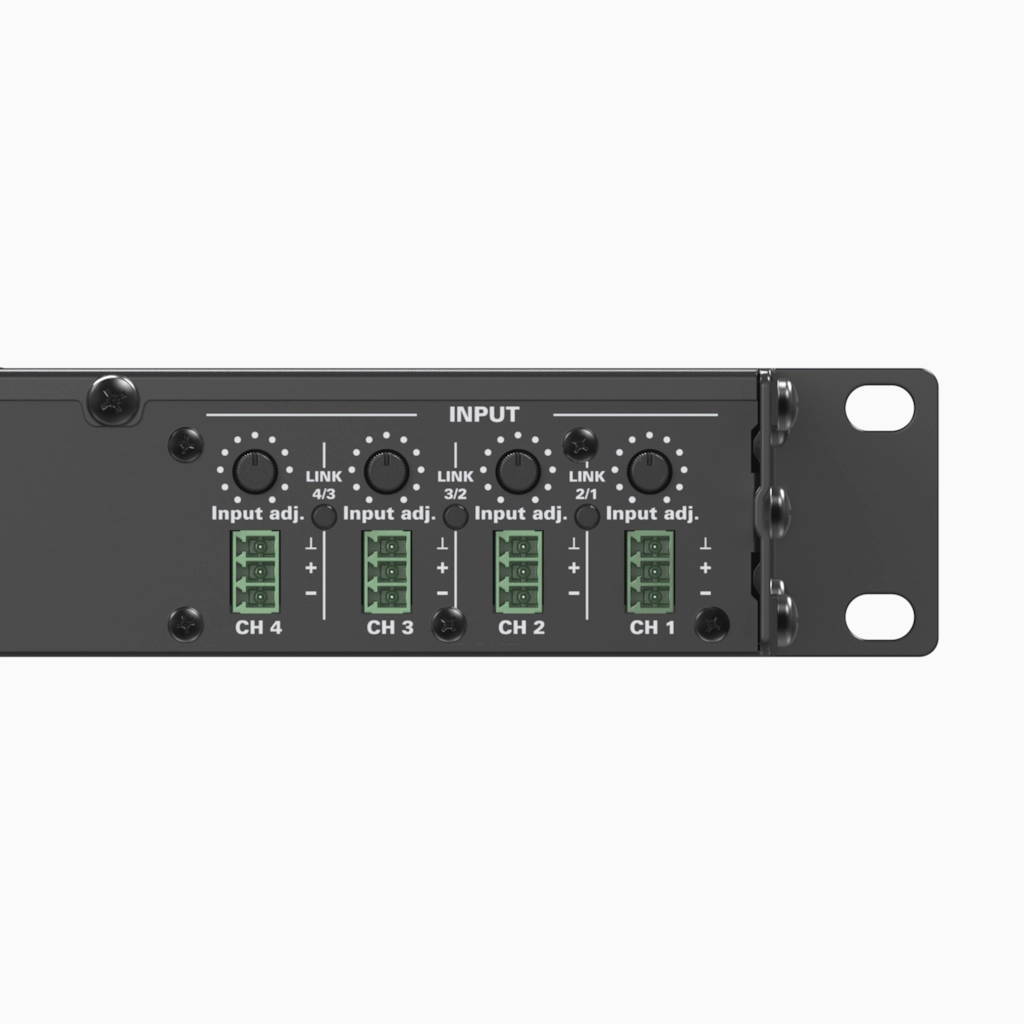

The highly efficient Class-D amplifier technology delivers an uncompromised sound experience in the most effective way. Miniature switches at the back allow you to daisy link inputs from one channel to another by just a single press on the switch.



amplifications

MANY DIFFERENT APPLICATIONS

Amplification for any application

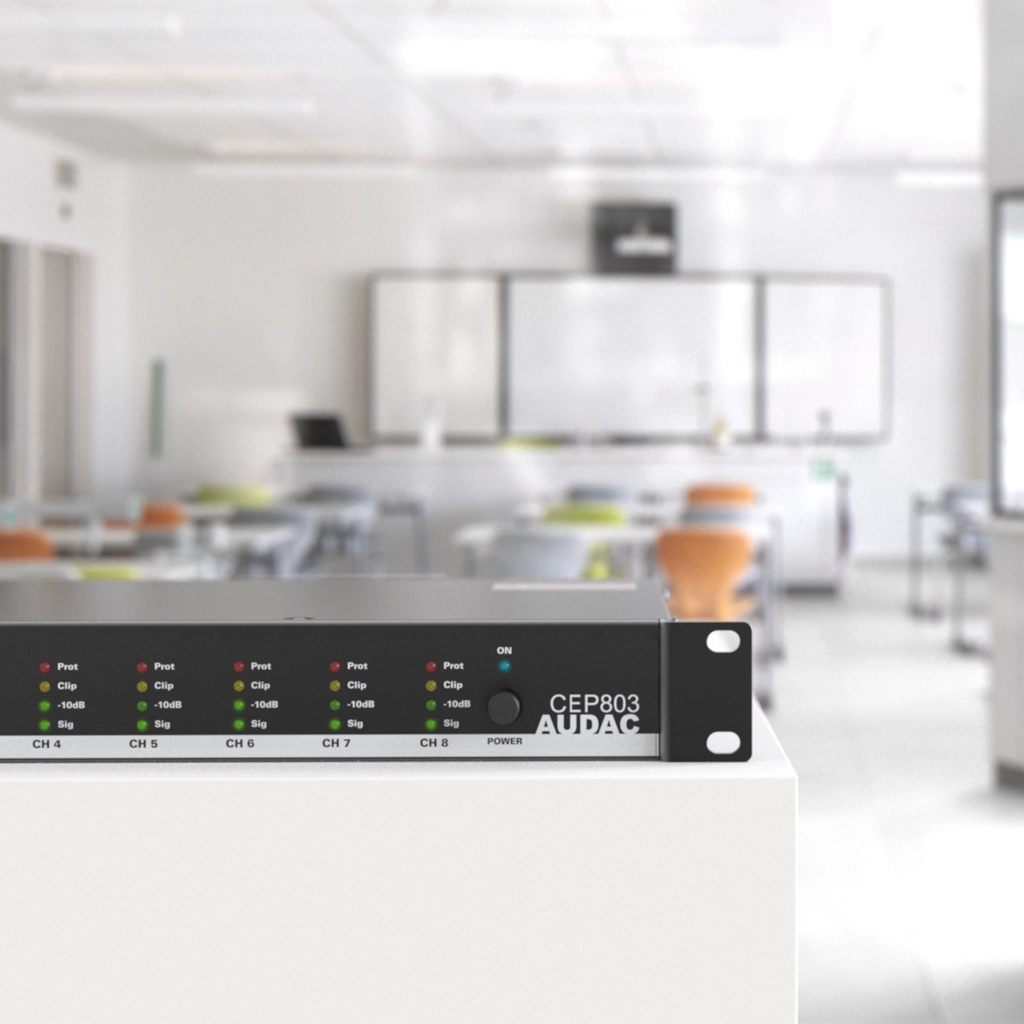

These both low impedance as 70/100V amplifiers are designed to deliver high-quality amplification, distributed over multiple zones, like small offices, retail or a school environment.



Technical Specifications

System specifications

RMS/AES power handling

Outputs

Inputs

Power

Signal / Noise

THD+N (@ 1 kHz)

Crosstalk (@ 1 kHz)

Technology

Protection

Cooling

Operating temperature

Frequency Response (± 3 dB)

Power Supply

Source

Inputs

Outputs

@ 70V

@ 100V

Connector

Connector

Supply

Consumption Standby

Consumption Idle

Nominal (1/3 MUP)

Nominal (1/8 MUP)

Sensitivity

Impedance

Connector

Voltage/Impedance

4 x 80W

4 x 80W

4 x 80W

4-pin Euro Terminal Block (Pitch – 5.08 mm)

3-pin Euro Terminal Block (Pitch – 3.81 mm)

100 ~ 240V AC mains operation voltage

> 100 dB

< 0.05% (1/8 rated Power)

< 70 dB

Class-D

DC short circuit

Overheating

Over load

Signal limiting

Convection cooled

0° ~ 40° @ 95% Humidity

110 Hz – 20 kHz

Switching mode

100 ~ 240 V AC / 50 ~ 60 Hz

0.6W

16.4W

196W

92W

-0.5 dB ~ 10.5 dB

10 kΩ balanced

3-pin Euro Terminal Block (Pitch – 3.81 mm)

IEC C14 Connector

Input linking through miniature switches

4 Ω

70 V / 62.5 Ω

100 V / 125 Ω

Product Features

Mounting

Unit height

Colours

Dimensions

Weight

Construction

19″

1HE

Black

482 x 44 x 355 mm (W x H x D)

6.3 kg

Steel

Recommended Applications

Bars & Restaurants

Corporate

Education

Retail

Downloads

Additional information

Brand

Audac

Amplifier Connectivity

4 Channel
