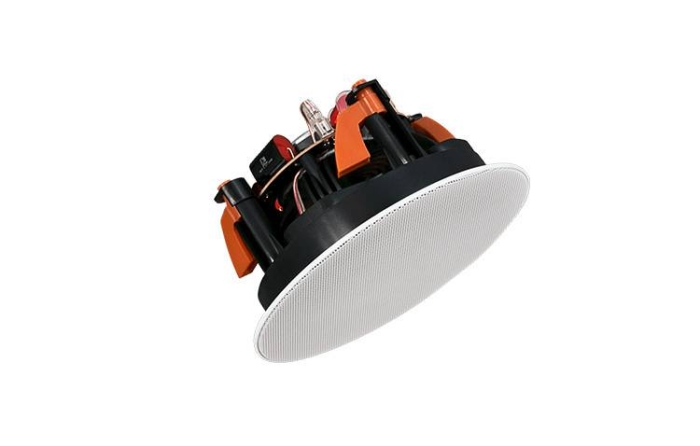

Audac CELO5

157.29

In stock

5″ 2-Way Ceiling speaker, Paintable front grill, Aluminum membrane drivers construction, 50 Watt RMS power

In stock

Description

Audac CELO5 – Doneo Malta

Features

  • High-End 2-Way Ceiling speaker
  • Slim grill with thin border (1 mm)
  • Elegant & Unobtrusive design
  • Warm & True to nature sound
  • Paintable front grill
  • 1” + 5” Aluminum membrane drivers
  • 50 Watt RMS power
  • Gold plated spring clamp connectors
  • Quick and simple mounting

Applications

  • Residential applications
  • Retail stores & Shopping centers
  • Restaurants
  • Bars
  • Public buildings
  • Offices

Description

The CELO series is AUDAC‘s first High-end Slim ceiling speaker series, consisting of three models which can guarantee an optimal experience for every situation and application. The CELO 5 is the smallest 5” model of this series.

Due to its slim grill design with very thin border of only 1 mm and a limited grill depth which emerges from the ceiling surface by only 3.2 mm, these speakers will become nearly invisible when mounted. To make them blend in even more, they can be painted in the same colour as the surrounding surface. This elegant and discrete grill is held in place by means of powerful neodymium magnets, making assembly and disassembly very simple, but still reliable enough to keep the grill in place during the complete lifetime of the loudspeaker.

When the grill is removed, it’s clear for anyone to see that the CELO speakers are made by using only the highest quality materials, guaranteeing an unsurpassed sound experience. One 1” Aluminum cone tweeter is held in place by an acoustically optimised arm in front of a 5” Aluminum cone woofer. Together with the crossover network which is made of high-quality components, this results is true to nature sound reproduction for a warm and detailed sound with an RMS power of 50 Watt.

To guarantee a lifetime stability, secure mounting and easy installation, the loudspeaker connection is made using Gold-Con™ spring clamp connectors. The mounting of the loudspeaker into the ceiling should be done by a quick-fixing mechanism which can be tightened by four screws and the front grill is held into place by neodymium magnets.

SYSTEM SPECIFICATIONS
Speaker Type 2-Way coaxial
Max Power 100 Watt
RMS Power 50 Watt
Impedance 8 Ohm
Sensitivity (1W/1m) 85 dB
Sound Pressure (Max W/1m) 102 dB
Frequency Response (±3 dB) 70 Hz – 20 kHz
Frequency Range (-10 dB)
Crossover Frequency 3 kHz
Crossover Type Passive Built-in
PRODUCT FEATURES
Dimensions (Diameter x Depth) Ø 175x 98 mm
Weight Net 1 Kg
Connection Gold-Con spring clamps
Drivers (coaxial)
HF 1” Aluminium membrane
LF 5” Aluminium membrane
Construction
High quality ABS housing
Grill Type Thin edged white grill
Cut-Out measurement 155 mm
Built-in Depth 95 mm
Mounting & Handling 4 Screw quick-fixing mechanism
Available Colours Black frame & White grill
SHIPPING & ORDERING
Packaging
Carton box
Shipping Weight & Volume 1.42 Kg ~ 0.007 Cbm
Accessories Included  Cut-out template
Optional accessories WTR24 24W 100V line transformer
