Audac CAP412

1,088.30

Call for availability

Audac professional Four Channel 100V Power Ampifier 4 X 120 Watt, Class-D, 4Ohms low impedance, High pass filter switch.

Call for availability

SEND EMAIL QUERY
SKU: CAP412 Category: Tag:

Description

Audac CAP412 4 Channel 100V Power Ampifier – Doneo Malta

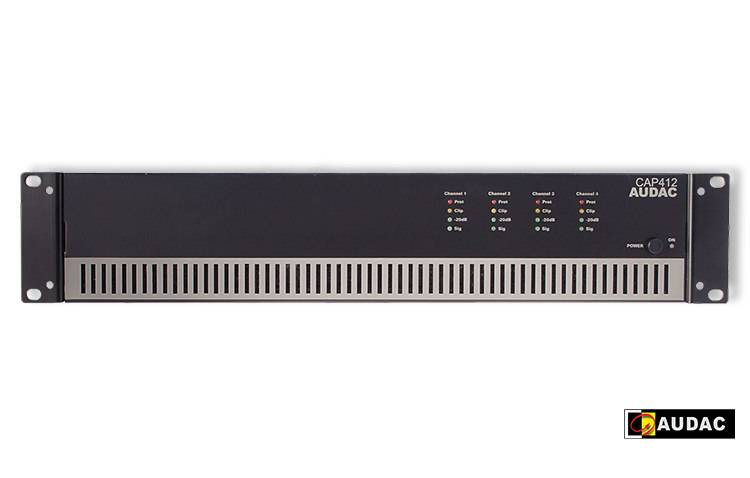

The CAP412 is a professional four channel 100V power amplifier which is capable of providing 120 Watt to each of the four separate output channels.

This creates a great flexibility and new possibilities for installed multi-zone audio distribution systems. It is designed as a no-nonsense amplifier with only the necessary controls and connections which creates great simplicity in use and installation. Every output channel contains different power taps to be used in 100 Volt, 70 Volt and even 4 Ohm low impedance applications and the input signal connections are performed using balanced XLR connectors, allowing link through to other amplifiers. Besides all the desired connection possibilities, the CAP412 also offers a gain control potentiometer and a high-pass filter switch (400Hz) on the back of the unit.

A built-in multipurpose protection circuit protects against DC malfunction, short circuit, overheating, overload, and limits the signal when necessary. This all is built into a double rack space, steel 19” housing.

RMS Power 4 x 120 W
Signal / Noise > 100 dB
THD+N (@ 1 kHz) < 0.3% (1/2 Rated Power)
Crosstalk (@ 1 kHz) < 80 dB
Technology Class-D
Common mode rejection ratio 70 dB
Protection DC Short circuit
Over heating
Over load
Signal limiting
Cooling Temperature controlled FAN
Operating temperature 0° ~ 40° @ 95% Humidity
Frequency Response (± 3 dB) 50 Hz – 22 kHz
Power Supply Switching mode
Source 100 ~ 240 V AC / 50 ~ 60 Hz
Inputs Sensitivity (1W/1m) -0.5 dB ~ 10.5 dB
Impedance 10 kΩ balanced
Connector XLR female with Male Linkthrough
Outputs Voltage / Impedance 100 V / 83 Ω
70 V / 42 Ω
4 Ω
Connector 4-pin Euro Terminal Block (Pitch – 5.08 mm)
Product features
Dimensions 482 x 88 x 420 mm (W x H x D)
Weight 14.800 kg
Mounting 19”
Unit height 2 HE
Construction Steel
Colours Black

Additional information

Brand

Audac
