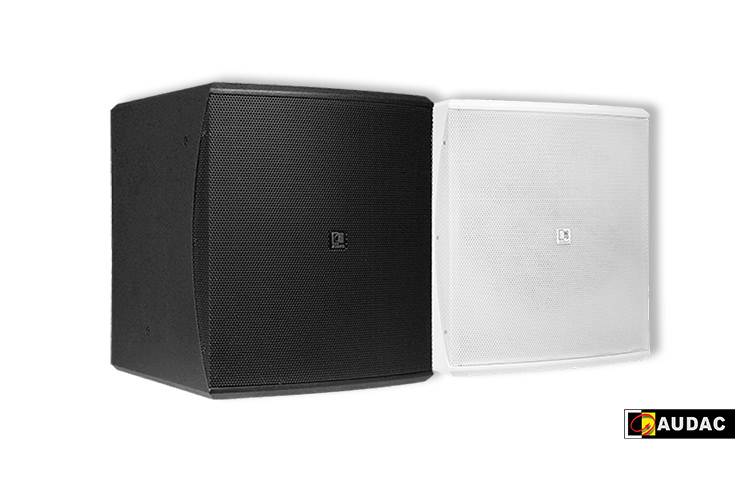

Audac BASO 10

429.40

Call for availability

Audac professional compact BASO 10” bass reflex cabinet speaker, 10″ driver, 450w program power, 120db SPL, 54Hz – 1.2Khz, 15mm plywood construction.

Description

Audac BASO 10 bass reflex cabinet speaker – Doneo Malta

The BASO cabinets are universally usable passive bass cabinets.

Their bass reflex design is engineered to be as compact as possible while giving the maximum performance in terms of sound quality and pressure. Their enclosures are crafted out of sturdy high-quality plywood while their elegant design enables them to be placed in any environment. The BASO10 is loaded with a 10” high-performance woofer with an RMS power rating of 225 Watt and maximum power of 450 Watt. The strength of this loudspeaker originates from a four layer wounded 1.5” voice coil in combination with an over-sized ferrite type magnet which provides an unusual high force factor. In combination with the low-loss suspension, this results in a linear behaviour with high efficiency and extremely wide frequency range These carefully selected high-grade materials in collaboration with accurate acoustical craftsmanship results in a deep and true to nature reproduction of bass. The highly-efficient design results in a sensitivity of 96 dB with capability of continuous sound pressure production up to 120 dB. The frequency response ranges from 54 Hz up to 1.2 kHz while going down to 38 Hz at -10 dB. Besides these acoustical aspects, a lot of attention has been paid to all other aspects making it as versatile as possible. The enclosure is compact designed without any sacrifice to robustness due to the 15 mm high-quality plywood material finished with structured coating.

Connections are made using two SpeakON compatible connectors located in a recessed connector dish, allowing link-through to other cabinets. This also allows close placement to any wall or corner.

Speaker type 10” Bass reflex cabinet
Max. Power 450 W
RMS Power 225 W
Impedance 8 Ω
Sensitivity (1W/1m) 96 dB
Sound Pressure (Max. W/1m) 120 dB
Bass reflex tuning frequency 50 Hz
Connectors 2 x Speakon compatible connector in recessed connector dish (linkthrough)
Drivers 10” Ferrite with low-loss suspension and 1.5” 4-layer wounded voice coil
Frequency Response (± 3 dB) 54 Hz – 1.2 kHz
Range (-10 dB) 38 Hz – 2 kHz
Product features
Dimensions 320 x 380 x 380 mm (W x H x D)
Weight 10 kg
Construction 15 mm plywood with structured coating
Front finish Steel grill (18 gauge)
Colours Black (RAL9004) (BASO10/B)
White (RAL9003) (BASO10/W)
Mounting & handling Rigging points 3 x M6 mounting bracket installation holes on both sides

Additional information

Brand

Audac

Colour

Black, White

Speaker Type

Surface mount
