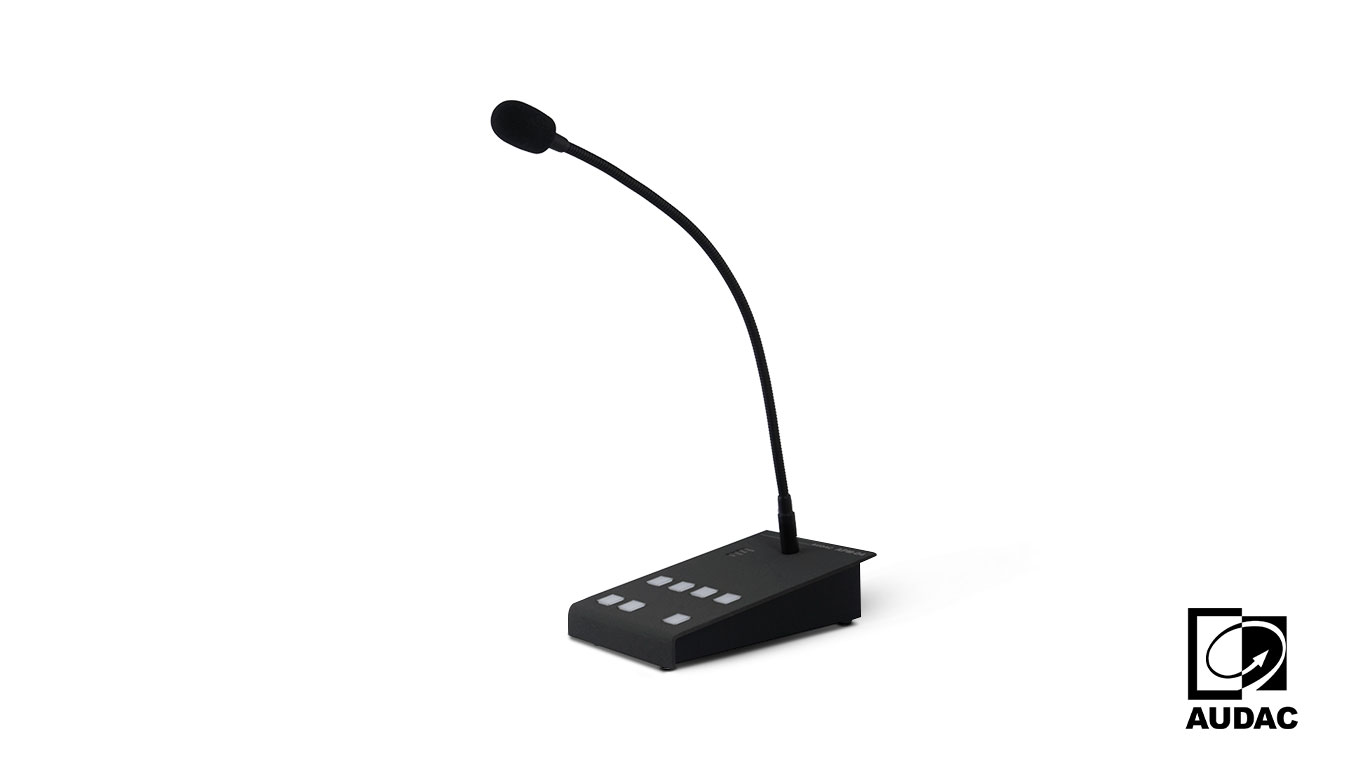

Audac APM104 MK2 Digital Paging Microphone – Doneo Malta

Features

4 zone/function buttons
Freely programmable configuration
Analogue & digital audio transfer
Selection & status indication LED’s
PTT, select & clear all buttons
Gooseneck microphone (cardioid)
Internal memory for ding-dong/voicefile
Built-in compressor/limiter
Custom button labeling for project overview

Applications

Public buildings
Fire departments
Warehouses
Business offices
Sports sites

Overview

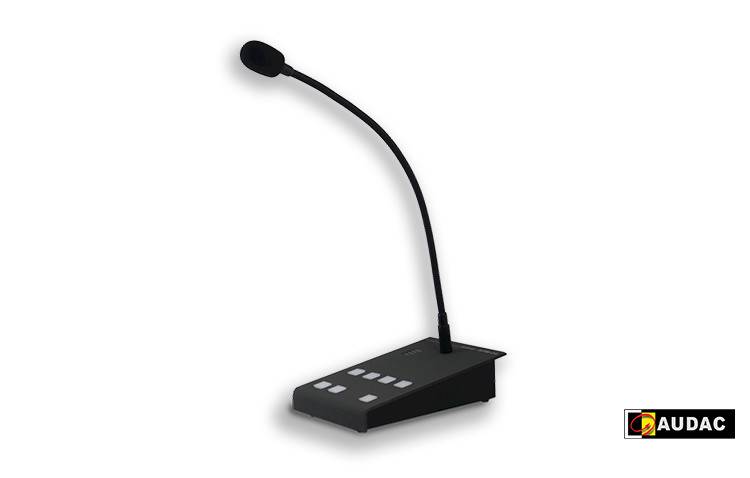

The APM104MK2 is a fully digitally controlled paging microphone featuring four freely programmable and configurable zone or function selection buttons, allowing it to be used for a wide varity of paging purposes, ranging from dispatching, priority calls, evacuation and general purpose announcements. The audio output is configurable for both analogue as well as digital audio output, allowing the APM104MK2 to be used in combination with various intelligent matrix systems as well as intelligent relay switch units which allow implementation to any existing sound / announcement systems.

The configuration can be freely programmed using the corresponding user interface or software tool. Few examples of programmable functions are zone select, push-to-talk, relay activation and even voice file playback. This allows the APM104MK2 to be implemented to a wide varity of applications ranging from simple & small to the most complex and demanding applications. In addition to standard paging / announcement systems functionality, the APM104MK2 offers specific features such as ‘multiple ding-dong’ allowing uploading and playback of custom chime tones and a voice file playback which allows internal storage of voice files with a maximum of 10 minutes spread over 30 different files.

Voice file playback is triggered by button activation or at pre-defined moments. The paging console is fitted with a cardioid gooseneck microphone and the system operation is monitored through three colour illuminated push buttons and various indicator LED’s. Custom button labeling further improves a clear and specific project overview

Technical Drawing

Specifications

Polar Pattern		Cardioid (unidirectional)
Sensitivity (1W/1m)		-42 dB
Indicators		3 Colours illuminated push button
		Level & status indication LED’s
Internal storage		10 minutes audio or messages spread over max 30 files
Connectors		RJ45 (data + Power)
Connection standard		TIA/EIA T568B
Buttons		4 x programmable zone/function
		1 x PTT (push-to-talk)
		1 x select & clear all
Microphone	Type	Back electret condenser
	Gooseneck length	350 mm
Frequency	Response (± 3 dB)	100 Hz – 20 kHz
Power	Consumption	4.8 W (max.)
	Supply	24 V DC (min. 16V DC)
Max. cable length	Without external PSU	113 m
	With external PSU	300 m

Additional information

Brand	Audac
Microphone Type	Desk
Microphone Features	Paging Microphone, Wired
