Mini Stereo Amplifier with remote wall mixer connection, 2 x 15 Watt output power (1 x 30 Watt in Bridge).

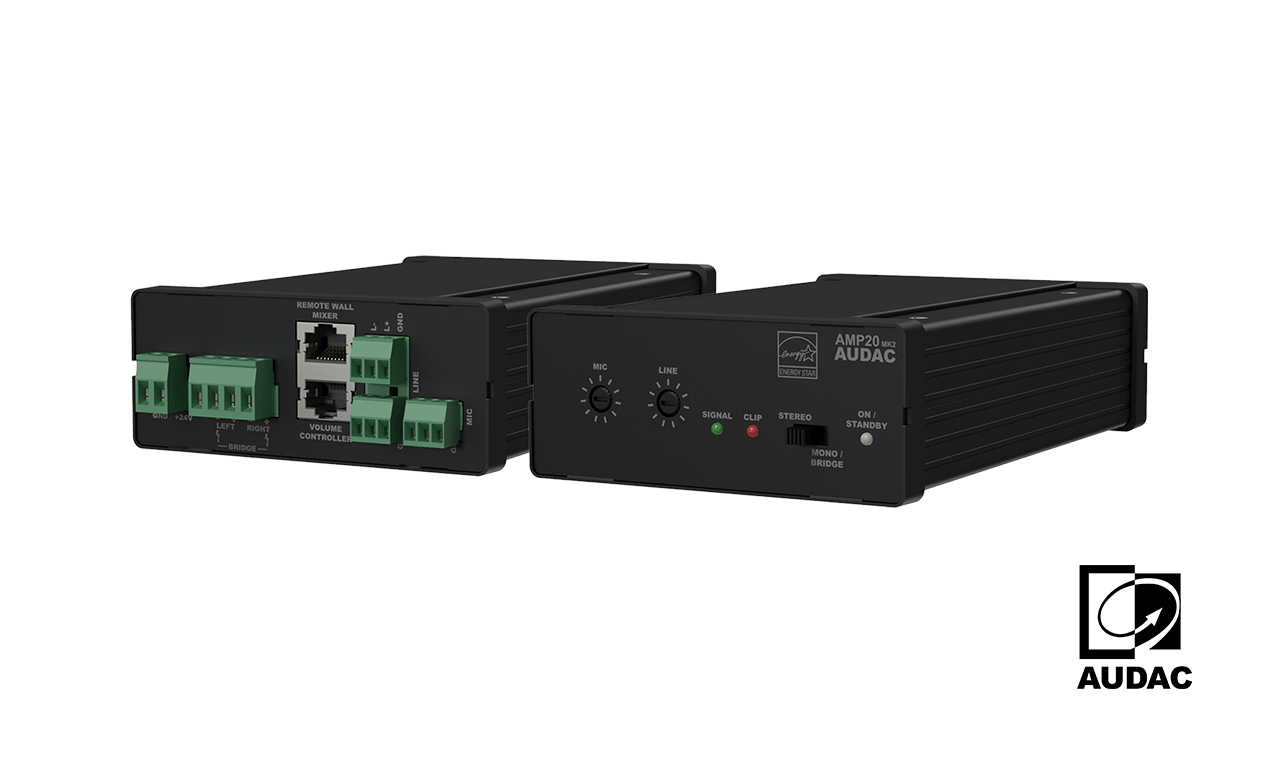

Audac AMP20 MKII
The AMP20MK2 is a mini stereo power amplifier with a power rating of 2 x 15 Watt, that lends itself perfectly to small speaker systems requiring compact and economical audio solutions.
It offers the ideal solution for applications such as class rooms, offices and meeting rooms where only a small amount of speakers are required. The compact size and very high efficiency makes it perfectly suited to be hidden in a closet, on a false ceiling or mounted under a desk or table. The combination of the stereo balanced line, with microphone input, makes it perfectly suited for applications where it should be used in combination with projection screens and video sources while a microphone is connected. Two gain potentiometers make it possible to control the sensitivity and balance between music and speech, while a switch allows bridging of the output channels to obtain one channel with merged output power.
A remote wall mixer can be connected for applications where local mixing for the inputs is desirable, while large distances can be covered between the source and amplifier using simple CAT5 twisted pair cabling. The volume controller input allows connection of an additional wall controller for overall volume control.
The Class-D amplifier technology, standby mode and included switching power supply makes this device compliant to the highest energy efficiency and environmental requirements. A variety of optionally available mounting brackets for the AUDAC S-Box product range are allowing desk, closet or 19” equipment rack installation.
|THD+N (@ 1 kHz)||< 0.1%|
|Crosstalk (@ 1 kHz)||< -75 dB|
|Signal / Noise||> 95 dB|
|DC Short circuit|
|Energy certification||Energy Star 3.0|
|RMS Power||@ 4 Ω Stereo||2 x 15 W|
|@ 8 Ω Stereo||2 x 7.5 W|
|@ 8 Ω Bridge||30 W|
|Outputs||Type||1 x Stereo Loudspeaker|
|Connector||4-pin Euro Terminal Block (Pitch – 5.08 mm)|
|Power||Supply||24V DC (PSD241 switching Power supply included 100 ~ 240V AC / 47 ~ 63 Hz)|
|Inputs||Balanced Stereo||Type||1 x Stereo Balanced Line|
|Connector||2 x 3-pin Euro Terminal Block (Pitch – 3.81 mm)|
|Sensitivity (1W/1m)||-12 dBV ~ +12 dBV|
|Balanced Microphone||Type||1 x Balanced Microphone|
|Connector||3-pin Euro Terminal Block (Pitch – 3.81 mm)|
|Sensitivity (1W/1m)||-50 dBV ~ -18 dBV|
|Type||1 x Remote Volume controller|
|Power||Consumption||Standby||0.8 W (PSD241 included)|
|Dimensions||108 x 44 x 165 mm (W x H x D)|
Network Port, Microphone In
