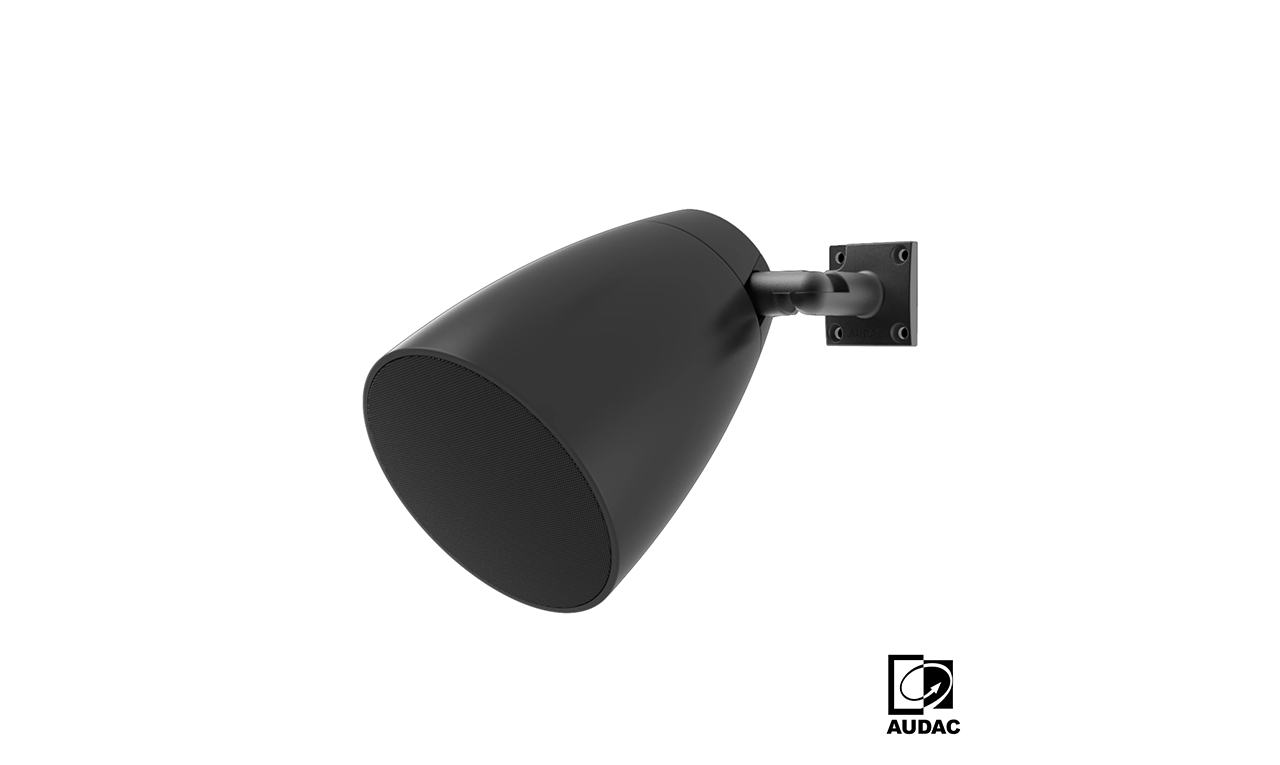

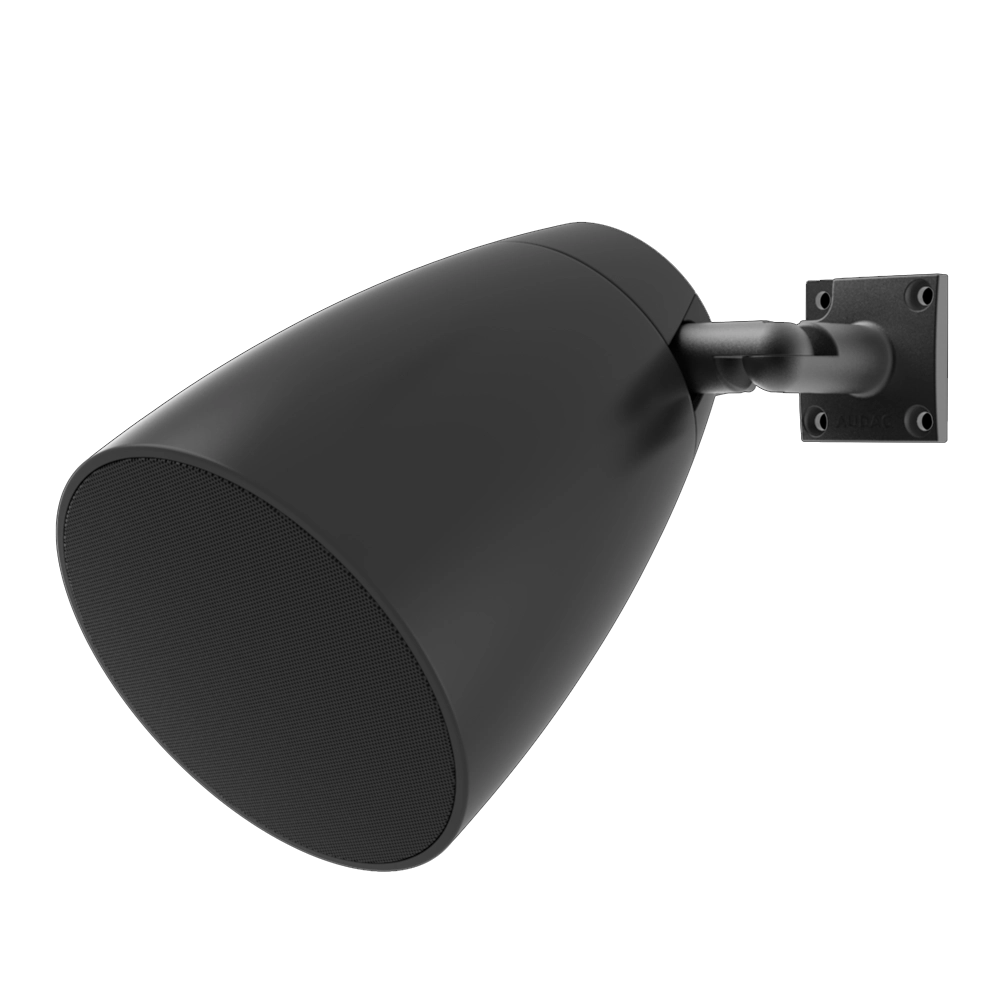

Audac ALTI4M – Surface Mount Loudspeaker

243.40

The ALTI4M is a variant of the ALTI pendant speakers, featuring a die-cast mounting bracket for wall & ceiling mount purposes. This allows the same audio system design and identity throughout the entire installation in case some areas are not allowing pendant solutions being used due to the ceiling heights or structures. Acoustics and construction are identically crafted, while connections are made through weatherproof AWX5™ connectors, this construction has an IP65 rating

SEND EMAIL QUERY

Description

ALTI SERIES

Pure sound, hanging around.

These revolutionary two-way pendant loudspeakers with excellent off-axis performance are designed for background and foreground music applications with open architectures and high ceilings

ALTI4

2-way 4" design surface mount loudspeakers

  • Innovative & unique design
  • Wide opening angle
  • AWX5™ waterproof connector
  • Outdoor rated construction
  • Countless mounting possibilities
  • Multi-tapping 70V / 100V line transformer

“Don’t feel like hanging around?”

The ALTI4M is a variant of the ALTI pendant speakers, featuring a die-cast mounting bracket for wall & ceiling mount purposes. This allows the same audio system design and identity throughout the entire installation in case some areas are not allowing pendant solutions being used due to the ceiling heights or structures. Acoustics and construction are identically crafted, while connections are made through weatherproof AWX5™ connectors, this construction has an IP65 rating.

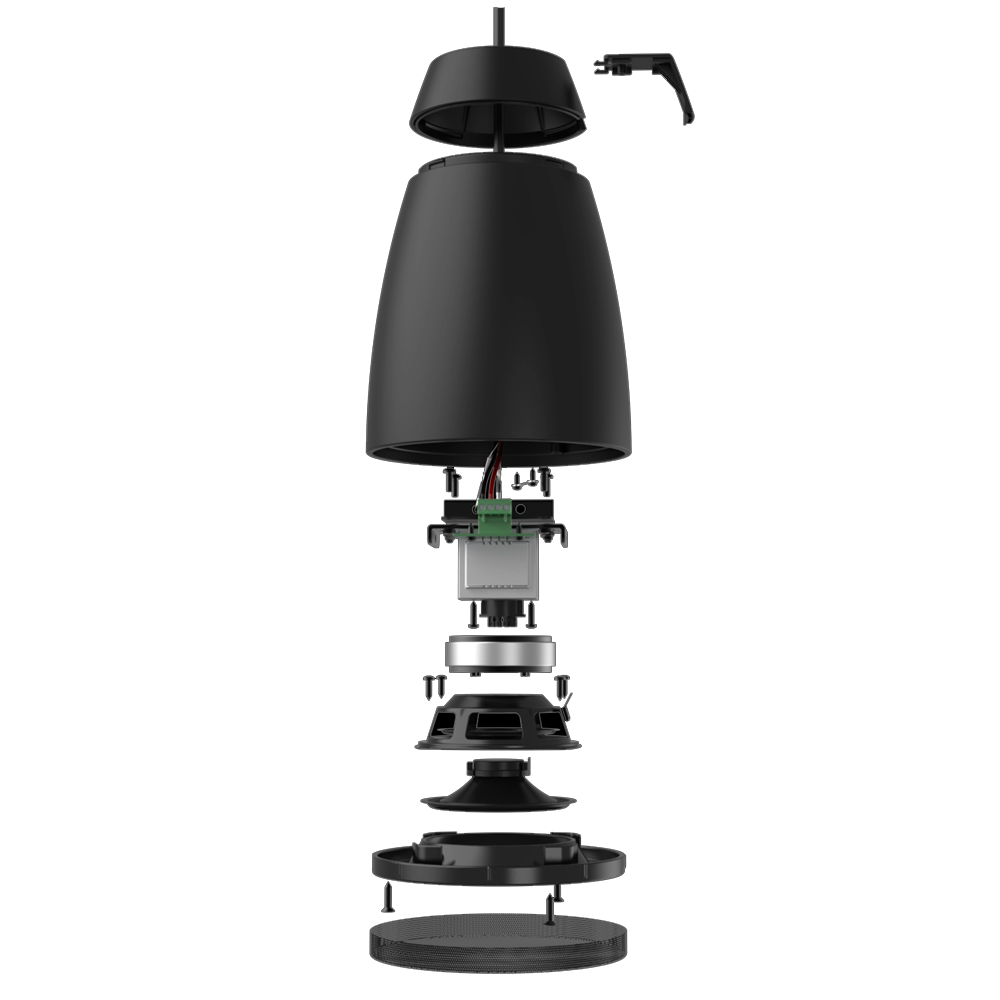

The ALTI4M features a 2-way 4” driver combination with a coaxially mounted 1” soft dome tweeter and is fitted with a phase plug for excellent off-axis performance. The 2-way combination with a high-quality polypropylene enclosure and acoustic engineering craftsmanship guarantees premium performance for demanding applications. A continuous power handling of 30 Watt (RMS) and maximum power handling of 60 Watt is achieved.

EXCEPTIONAL DISPERSION

Wide opening angle

The wide opening angle of the speaker guarantees an exceptional dispersion in all different kinds of applications and locations with high ceilings and large open spaces. The carefully matched components and construction guarantee optimal coverage over the entire frequency range.

ALTIxM-unique-mounting-possibilities

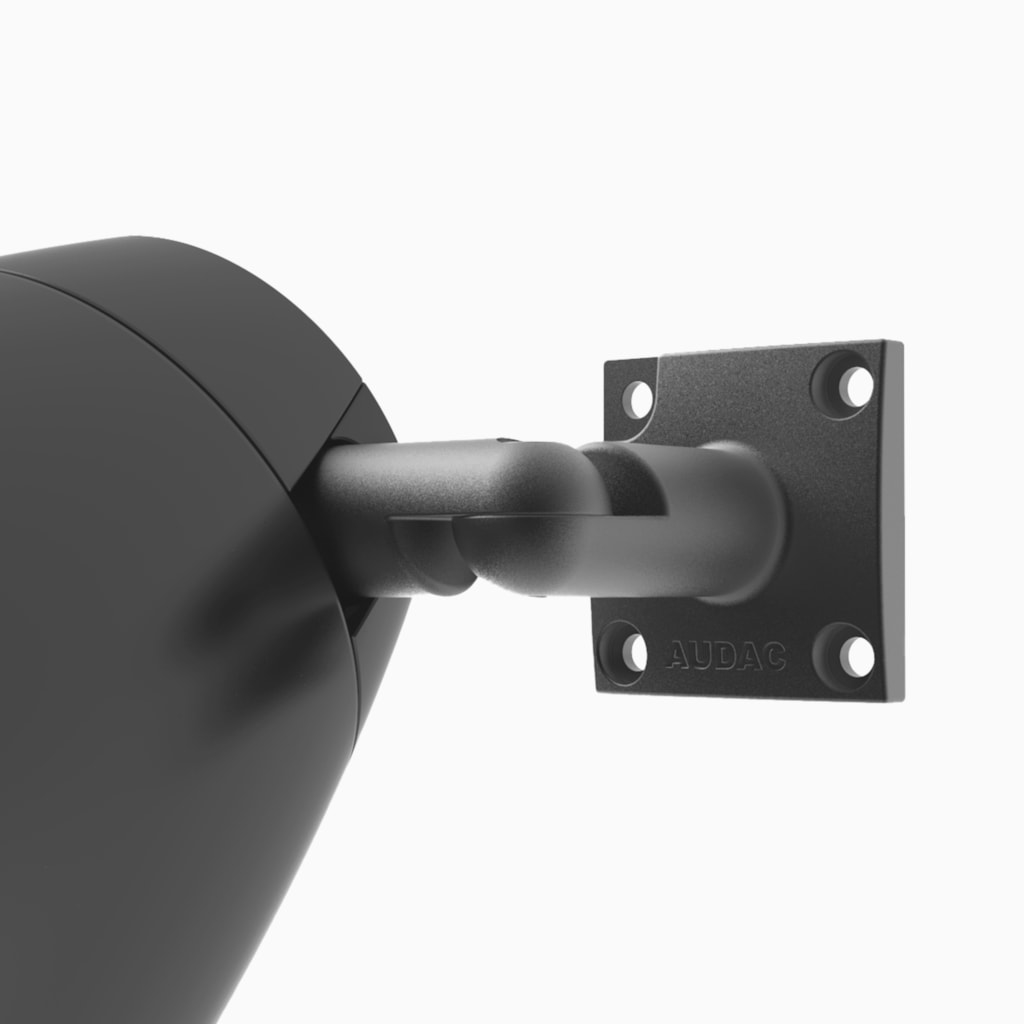

UNIQUE MOUNTING POSSIBILITIES

Mount in any desired angle

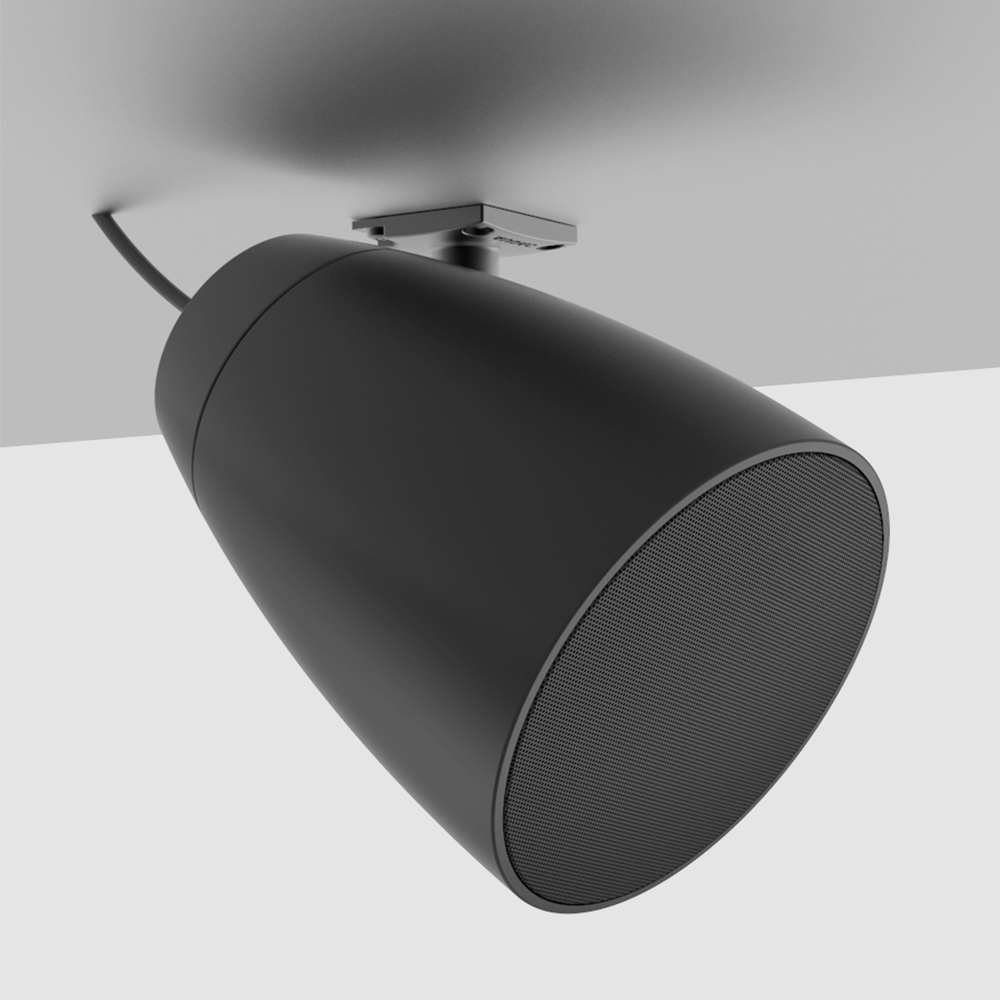

A die-cast mounting bracket makes wall & ceiling mounting possible in any desired angle. This swivelling bracket allows the same audio system design and identity throughout the entire installation. Some areas do not not allow pendant solutions being used due to the ceiling heights or other structures.

ALTI-moisture-resistant-driver

SUITABLE FOR OUTDOOR APPLICATIONS

Moisture resistant driver

Thanks to a special coating applied to the drivers, the ALTI series are also suitable for use in applications with high levels of humidity such as outdoor terraces, bathrooms or many more!

Technical Specifications

Available models

ALTI4M/B

ALTI4M/W

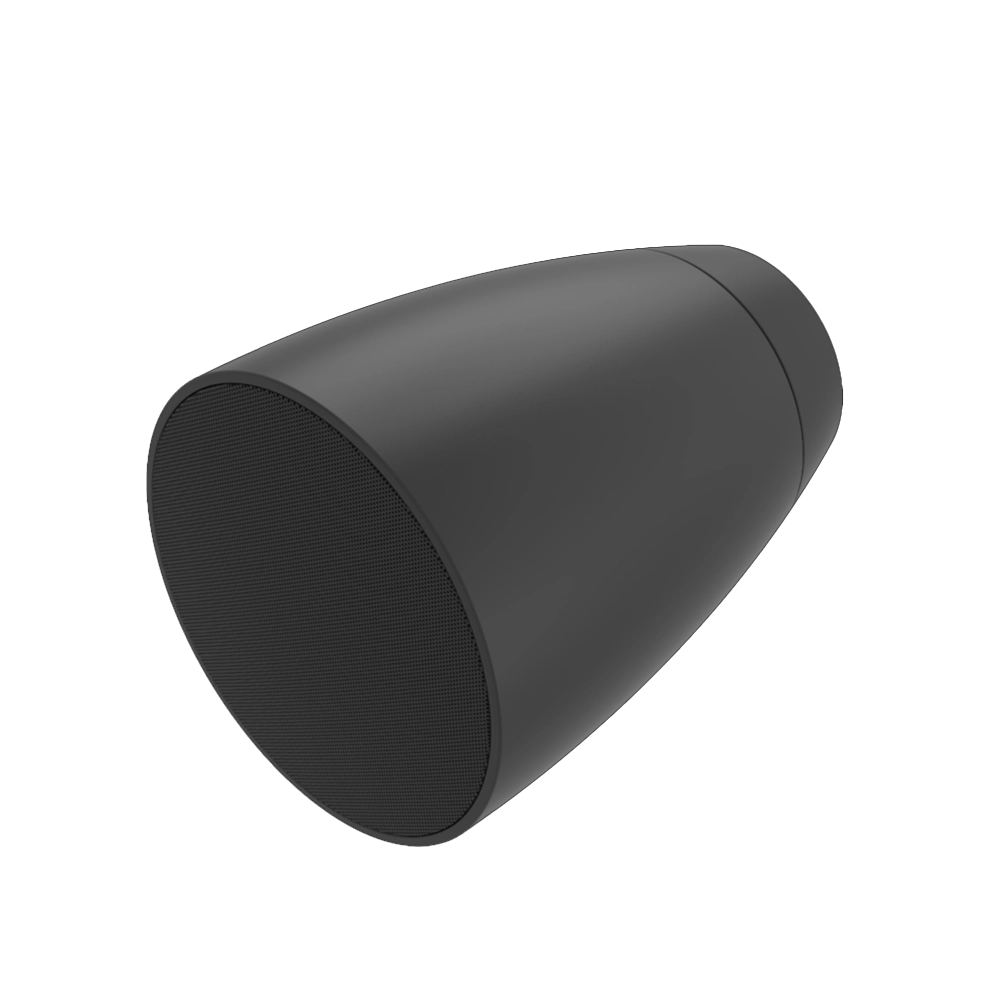

Black version

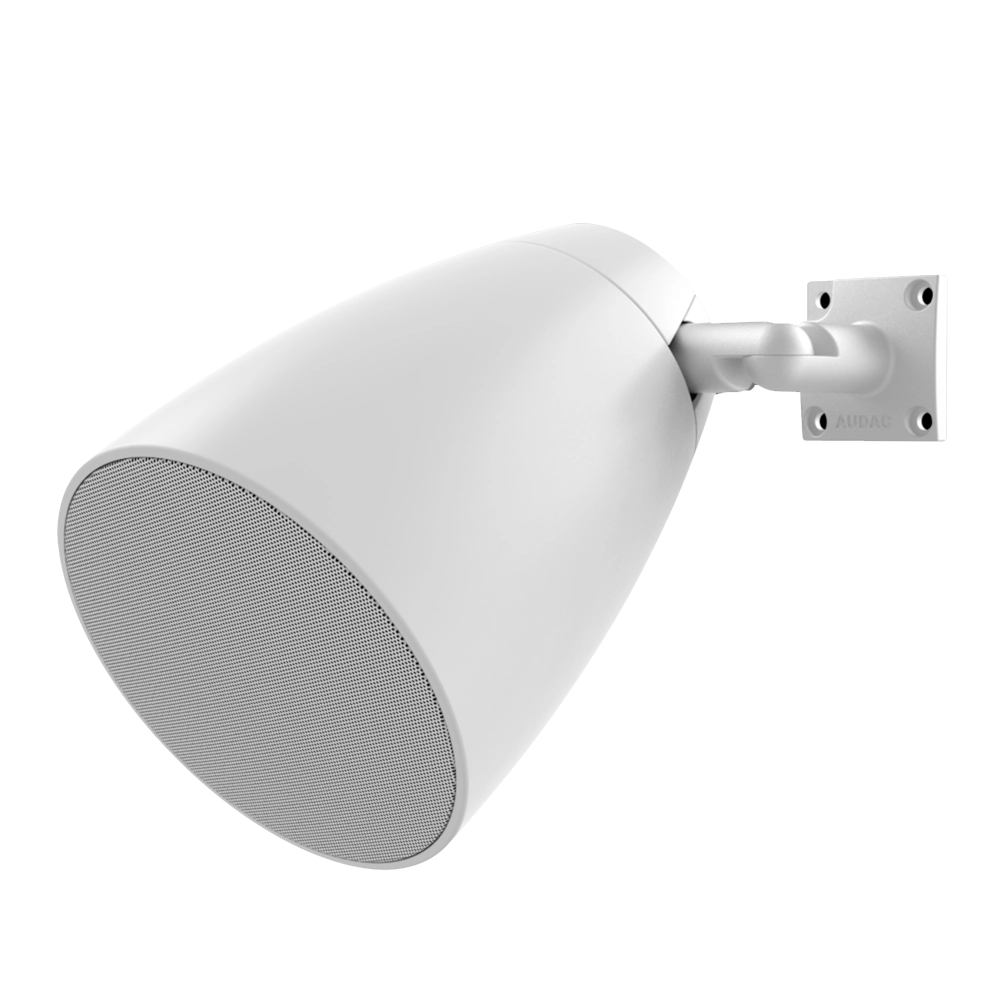

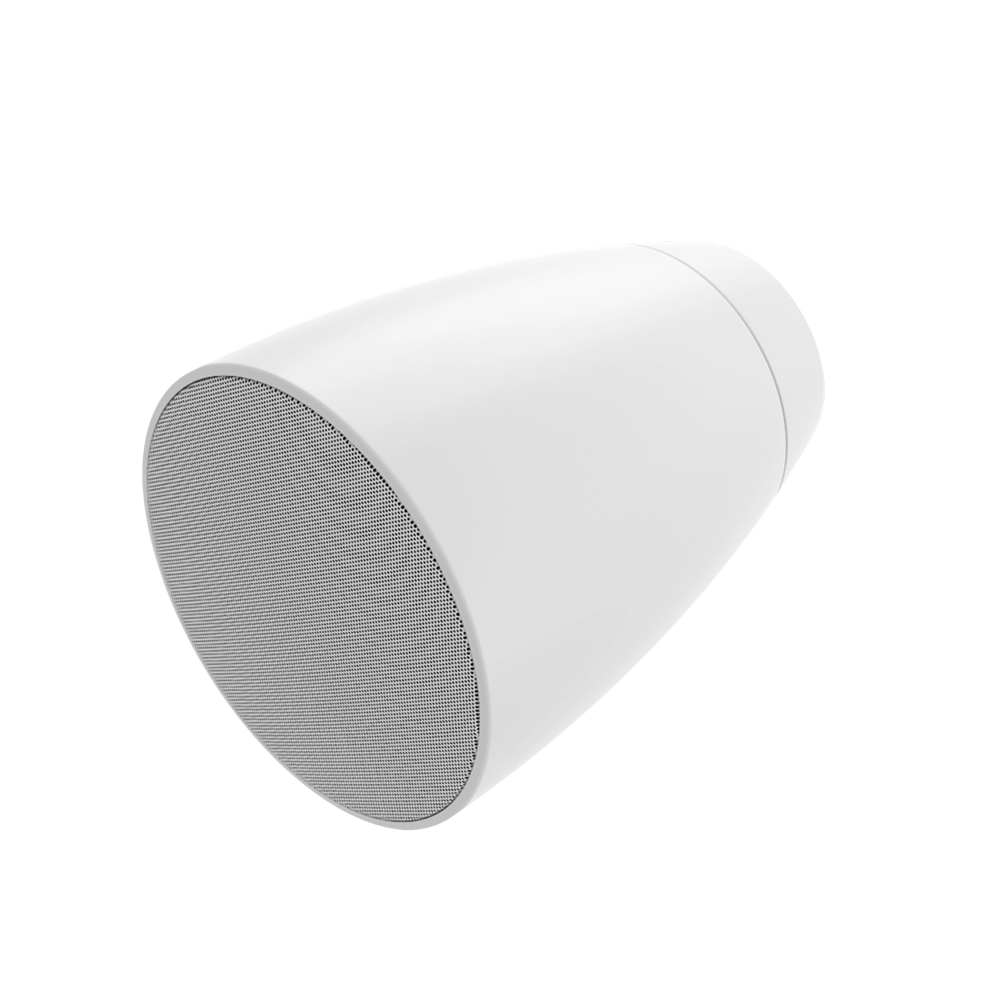

White Version



System specification

Speaker type

Peak power handling

Program power handling

RMS/AES power handling

Impedance

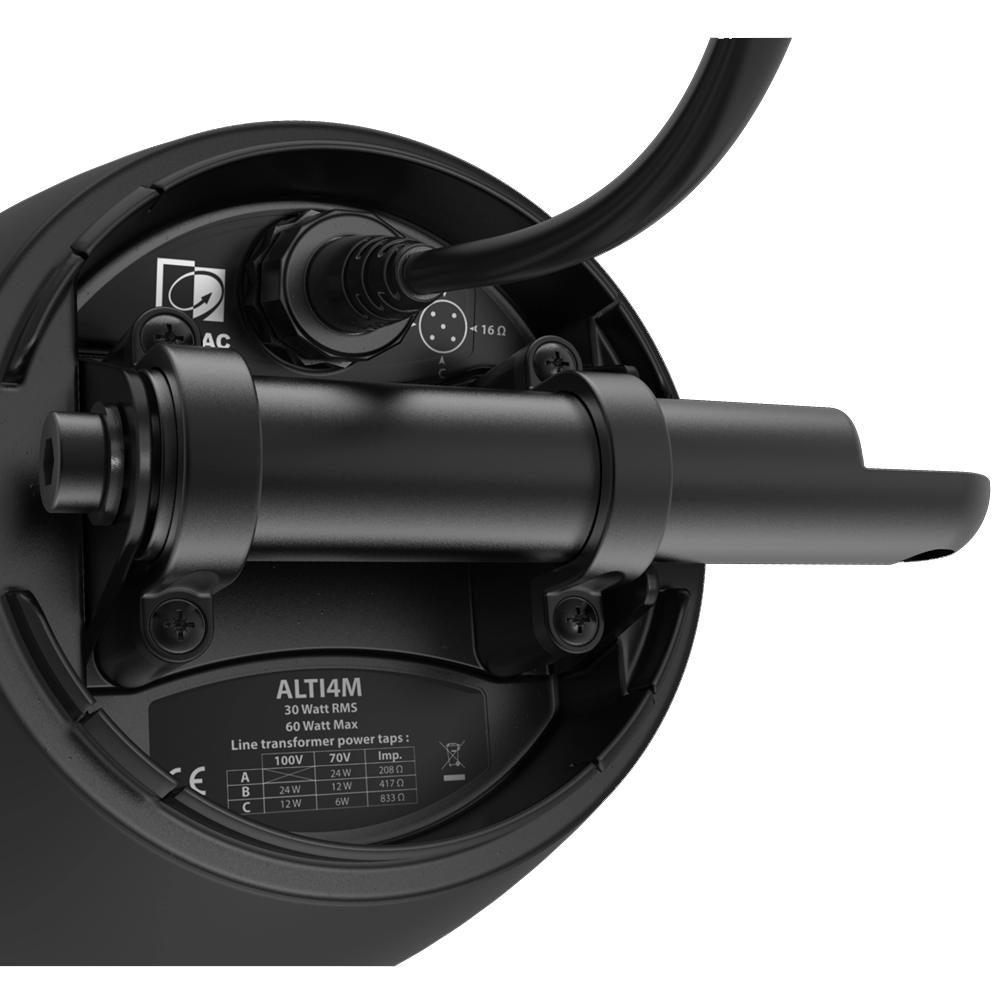

Line Transformer Tappings

1

2

3

Dispersion Conical

Connectors

Sensitivity (1W/1m)

Sound Pressure (Max. W/1m) @ 16Ω

Frequency    Range (-10dB)

Frequency Response (± 3 dB)

Ingress Protection rating

2-way coaxial

120W

60W

30W

16Ω

208 Ω – 100 V / Not used – 70 V / 24 W

417 Ω – 100 V / 24 W – 70 V / 12 W

833 Ω – 100 V / 12 W – 70 V / 6 W

165° (average 500 Hz to 5 kHz @ -6 dB)

WaterproofAWX-5 connector

80dB

95.1dB

65Hz- 20Khz

85Hz- 20Khz

IP65

Product Features

Dimensions

Connection cable length

Construction

Front Finsih

Mounting & handling

Accessories Included

Weight

205 x 170 x 258mm (WxHxD)

0.7m

Polypropylene

Aluminium grill

2-way revolving mounting bracket

5-pin connection cable (70cm)- AWC07

2-way revolving mounting bracket

2.31Kg

Recommended Applications

Bar & Restaurants

Corporate

Sporting facilities

Downloads

Additional information

Colour

Black, White

Brand

Audac

Speaker Type

Surface mount, 100 Volt, Background Speaker
