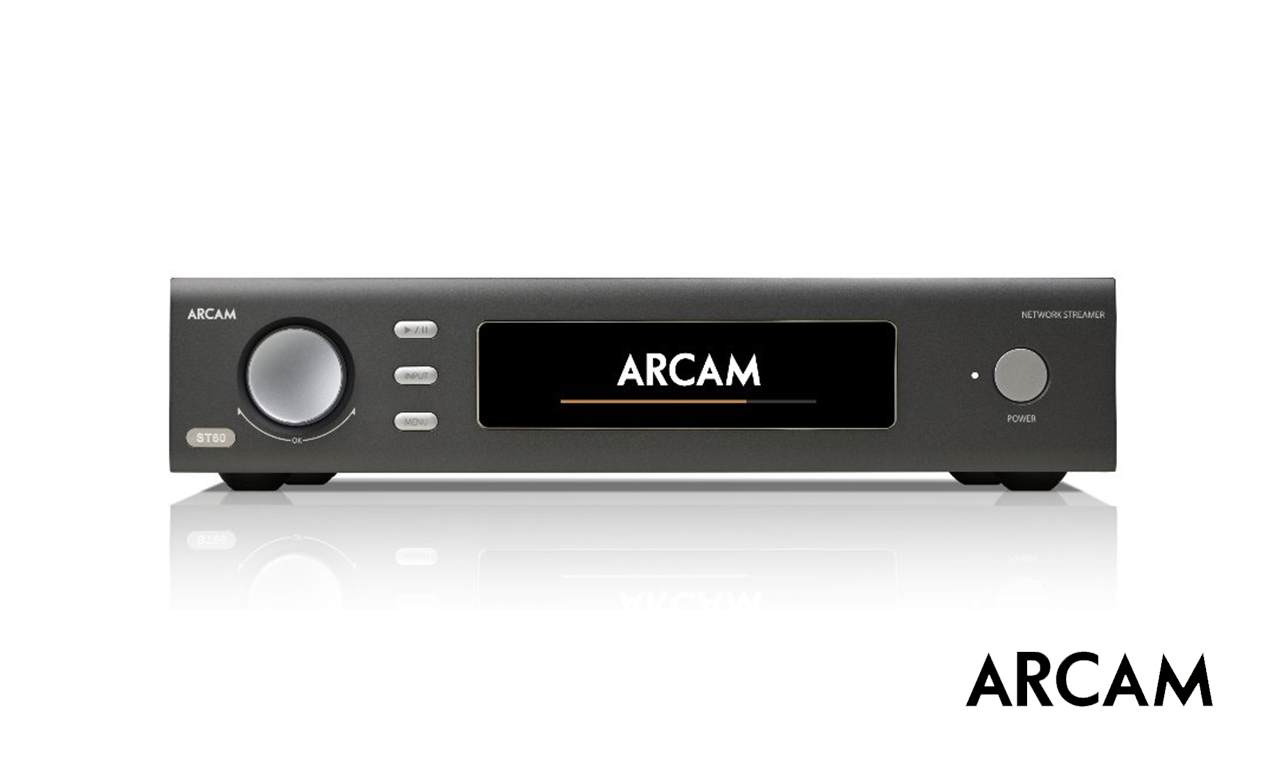

Arcam ST60 Hi-Fi Streamer

1,499

The ST60 is a high-performance streaming source that enables streaming audio from all of the major services (Tidal, Qobuz, Spotify, Napster, Deezer, etc) over Cast or Airplay2.

SEND EMAIL QUERY

Description

ARCAM ST60

Effortless Streaming, Quality Sound

The ST60 is a high-performance streaming source that enables streaming audio from all of the major services (Tidal, Qobuz, Spotify, Napster, Deezer, etc) over Cast or Airplay2.

It will also handle UPnP sources and is Roon Ready. It is the perfect companion for the HDA range of stereo amplifiers and is also fully compatible with the MusicLife app.

PRODUCT DETAILS

  • 4 Digital inputs
  • Balanced XLR and Single-ended RCA analogue outputs
  • Optical and coaxial digital outputs
  • GoogleCast, Airplay2, uPnP Streamer
  • Roon Ready certified
  • MQA supported
  • 32-bit ESS9038Q2M Sabre DAC
  • Full I/P and RS232 control including Control4 and Crestron
  • Total harmonic distortion + noise = 0.0008%

SPECIFICATIONS

Analogue Outputs
Digital to Analogue ConversionESS9038 32-bit/192kHz Delta-Sigma DAC
Signal/Noise Ratio (Awtd)118dB unbalanced, 122db balanced
Harmonic Distortion (1kHz)<0.0008%
Frequency response10Hz – 20kHz ± 0.5dB
Output Level (Fixed)2.2Vrms unbalanced, 4.5Vrms balanced

Output Impedance

47Ω unbalanced, 600Ω balanced
Minimum Recommended Load5kΩ
RMS Jitter< 20 psec


Digital Inputs


SPDIF ReceiverAKM4113
Supported sample rates
Optical
Coaxial
32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz
32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Bit depth16-bit – 32-bit

Digital Interfaces


USBUSB 2.0 High Speed (480Mbps)
Ethernet10/100Mbps
Wireless802.11b/g/n

General


Mains voltage110–240V, 50–60Hz
Maximum power consumption10W
Low power standby consumption0.5W
Network standby consumption2W
Dimensions W x H x D (including feet and control knob)433x102x306mm
Weight (net)5.5kg
Weight (gross)7.9kg
Supplied accessories

Mains Lead, Remote Control, 2 x AAA batteries, User Manual, 2 x WiFi Antenna

GET THE APP

Control the UPnP audio and basic function of this product with your iPad, iPhone or iPod Touch and the FREE MusicLife App! The Arcam control app is now available on Android.
