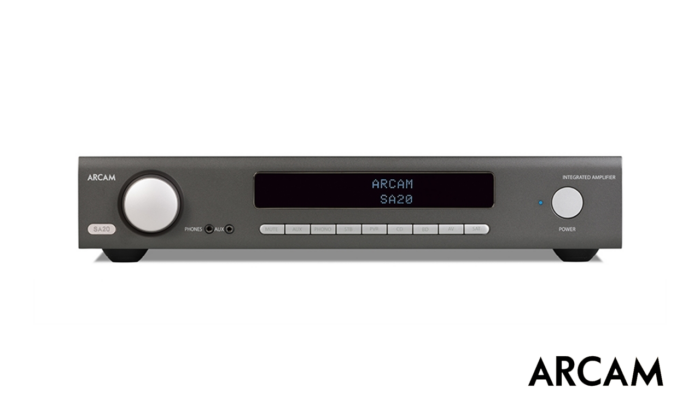

Arcam SA20 Class G Integrated Amplifier

1,299

In stock

Class G amplification for impeccable class A sound at lower volumes. 90w Per channel with 5 analogue inputs including phono and 3 digital inputs with built in audiophile 32-bit Sabre DAC.

In stock

Description

ARCAM SA20

Class G Integrated Amplifier

There are two frequent problems with hi-fi amplifiers. Class A, the traditional audiophile’s choice, uses a single power supply constantly running at full capacity, even when there’s no signal coming through. Great for reproducing those subtle details at low levels however struggles to provide extreme power when needed.

Class A/B, the most common amp class, switches between the two internal amplifiers, one for each half of the waveform. Far more efficient but often a recipe for crossover distortion, since those low-level details we crave can get lost within any mismatch between the two switching over.

Class G is essentially a hybrid amplifier, utilizing Class A specifically for low-level signals, but when required switching in an additional power supply to power those larger sections of the waveform.

PRODUCT DETAILS

  • Class G amplification for impeccable sound and efficiency
  • 90W of power per channel
  • 5 analog inputs including phono
  • 3 digital inputs
  • 32-bit DAC,Sabre ESS9038K2M
  • Full I/P control
  • Total harmonic distortion + noise = 0.003%

SPECIFICATIONS

Frequency Response 20Hz – 20kHz ± 1dB
Nominal Sensitivity 1V
Input Impedance 10kΩ
Power output both channels driven 120W into 8Ω, 220W into 4Ω
Maximum Input 6Vrms
Signal/Noise ratio (A-wtd) 50W, ref.
1V input
106dB
Mains Voltage 110-120V or 220-240V, 50-60Hz
Maximum Power Consumption 500W
Dimensions W x H x D (including
feet, control knob and speaker
terminals)
433x87x323mm
Weight 9.2kg
Packaged Weight 11.1kg

GET THE APP

Control the UPnP audio and basic function of this product with your iPad, iPhone or iPod Touch and the FREE MusicLife App! The Arcam control app is now available on Android.

Additional information

Brand

Arcam

Product Type

Multiroom Amplifier

Amplifier Connectivity

Network Port, USB
