High-performance power amplifier with 7 channels of 140w Class G amplification offering 20w of Class A operation. Perfect for high end home cinema or multiroom music.

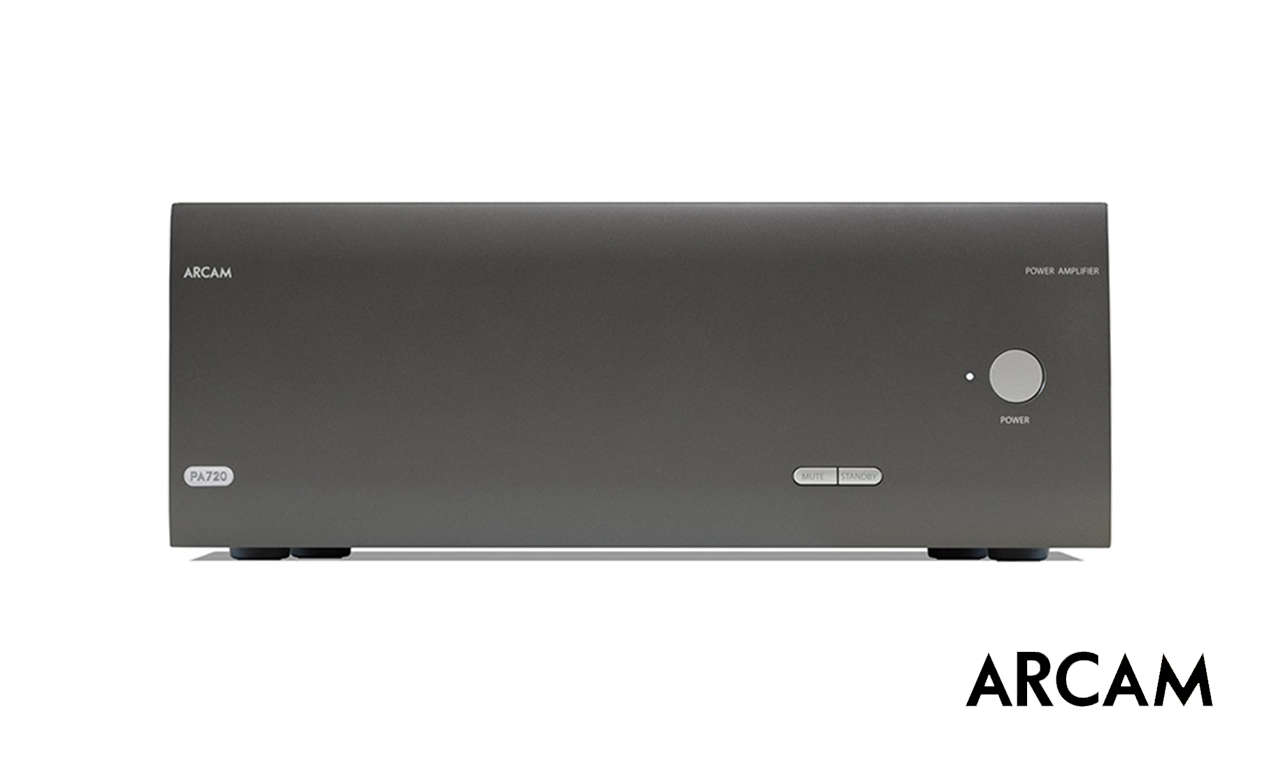

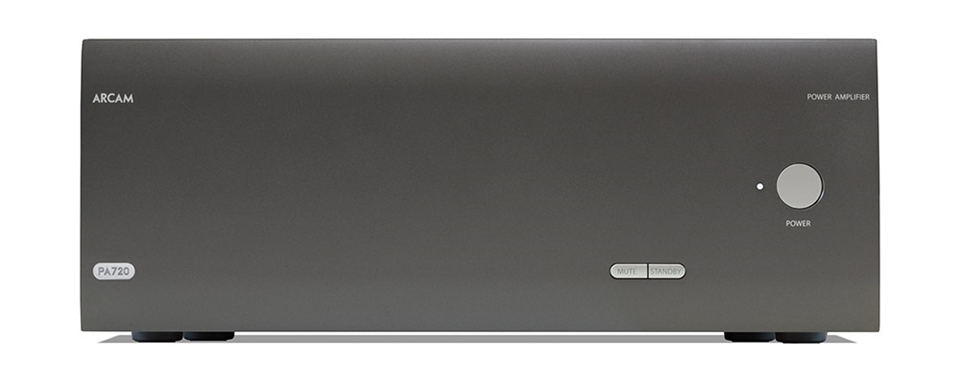

7 channel Class G Power Amplifier – Arcam PA720
€3,599
In stock
In stock
Description
PA720
Class G Power Amplifier
Exceptional Power, Immersive Sound
The PA720 is a high-performance power amplifier that delivers 7 channels of efficient Class G amplification. With an impressive 140W per channel, the PA720 is designed to offer the greatest flexibility and power without compromising on control.
Featuring the best-in-class components including a toroidal-based power supply, acoustically damped chassis, paralleled transistor output stages, and exceptionally low levels of distortion, the PA720 masters the reproduction of music with all its originality and detail for an unmatched level of sound quality and clarity.
PRODUCT DETAILS
- 7 Channel Power Amplifier
- 7 x 100W Class G amplification (8ohm, 20Hz-20kHz, 0.2% THD)
- Class G amplification with 20W of Class A operation
- Toroidal transformer

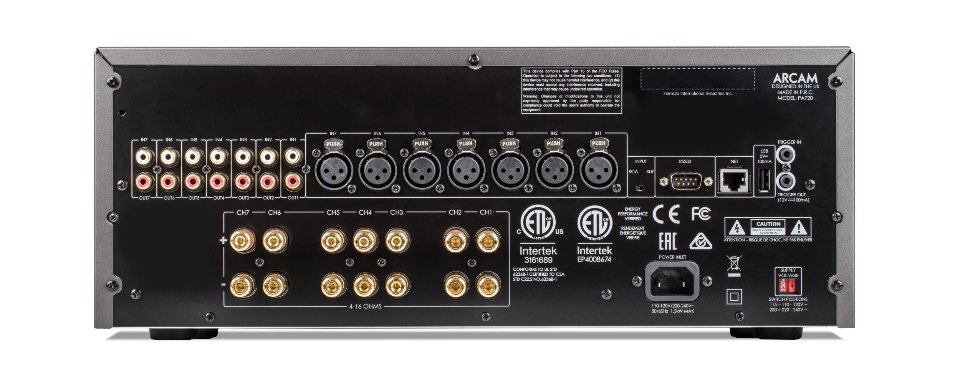

- Ethernet, RS232 control
- Switchable RCA or balanced XLR inputs
SPECIFICATIONS
Â
| Continuous power output at 0.2% THD per channel | Â |
| Seven channels driven, 4Ω / 8Ω, 20Hz – 20kHz | 140W / 100W |
| Five channels driven, 4Ω / 8Ω, 1kHz | 175W / 110W |
| Two channels driven, 4Ω / 8Ω, 1kHz | 225W / 140W |
| Harmonic distortion, 80% power, 8Ω at 1kHz | 0.002% |
Inputs | Â |
| Â | RCA Type | XLR Type |
| Input sensitivity 50W / 8Ω | 800mV RMS | 1.6V RMS |
| Signal/Noise ratio (A-wtd) 50W / 8Ω | 105dB |
| Input impedance | 10kΩ |
| Frequency response | 20 – 20kHz +/-0.05dB |
General | Â |
| Mains voltage | 110–120V or 220–240V, 50–60Hz |
| Power consumption (maximum) | 1.5kW |
| Power consumption (idle, typical) | 90W (Thermal dissipation approx. 340 BTU/hour) |
| Power consumption (standby) | <0.5W |
| Dimensions W x D x H (including feet, control knob and speaker terminals) | 433 x 425 x 177mm |
| Weight (net) | 18kg |
| Weight (packed) | 19.7kg |
| EAN | 6925281956720 |
GET THE APP
Control the UPnP audio and basic function of this product with your iPad, iPhone or iPod Touch and the FREE MusicLife App! The Arcam control app is now available on Android.
Additional information
| Brand | Arcam |
|---|---|
| Product Type | Power Amplifier |
| Amplifier Connectivity | Network Port, USB |
