The muscular Monitor MRW-10 powered subwoofer, combined with The SoundFrame 3 On-Wall a 2-way configuration with a pivoting 1-inch tweeter module and a 4-inch C-CAM driver. and the Yamaha RX-V4A – 5.2 ch AV receiver with CINEMA DSP 3D, HDMI™ 4-in/1-out, wireless surround.

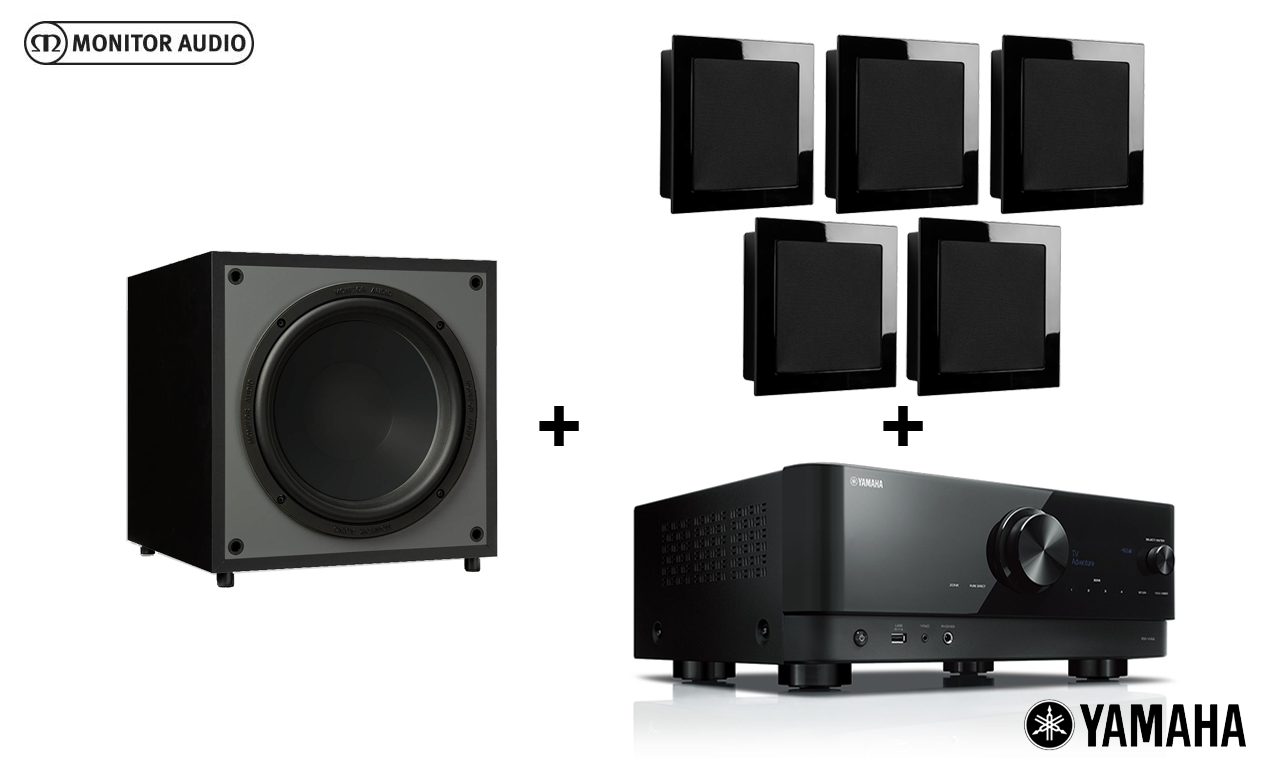

5.1 package, 5 x SoundFrame 3 + MRW10 Sub + Yamaha RXV4ABL – Black
Call for availability
Call for availabilitySEND EMAIL QUERY
Individual images for the grille cloths can be selected from our library or bespoke speakers can be created using your own high-resolution photographs. The cabinet frames are available in high gloss white and high gloss black lacquer.
The SoundFrames can be fitted either in-wall or on-wall and with or without a frame using the Frameless grilles option.
The SoundFrame 3 On-Wall has a 2-way configuration with a pivoting 1-inch tweeter module and a 4-inch C-CAM driver.
- Quick and easy installation.
- Slender 87 mm (3.5″) cabinet depth.
- Choice of high gloss white or black lacquer frames.
- SoundFrame 3: 2-way configuration: a pivoting 1-inch tweeter module with a 4-inch C-CAM driver.
- High frequency attenuation +- 3 dB.
- Ultra-discreet on-wall/in-wall AV/audio system, suitable for any interior.
The Monitor MRW-10’s rigid cabinet is made from 18 mm thick MDF and accommodates a 10″ long-throw MMP II bass driver and a rear port that allows optimal output from the powerful onboard 100 W class D power amplifier.
The Monitor MRW-10 boasts an array of features dedicated to optimizing a home theatre system. There are three pre-set EQ mode settings (Music, Movie, Impact) to offer a level of adjustment for all rooms and tastes, and the controls use an advanced DSP based architecture to provide the ultimate in audio flexibility
Monitor MRW-10 Key Features
- 10″ MMP II long-throw subwoofer driver
- Rigid MDF cabinet with rear porting
- Powerful 100 W Class D power amplifier – high efficiency and punchy bass delivery
- Switch-mode power supply, designed to deliver high continuous rating and provides the instantaneous delivery of high current when required
- DSP processing with all control features and crossover performed in the digital domain
- Three pre-set EQ mode settings. Music / Movie / Impact
- 12 V trigger – provides switching control from AV amp, processor, or home automation control system
- 18 mm thick MDF construction
Full Monitor Series Brochure
CINEMA DSP 3D
Incorporates extensive sound field data from world-famous concert halls and music clubs to reproduce
big theater acoustics within the walls of your home.
Restores compressed audio so it sounds the way it was intended to be heard.
High Slew Rate Amplifier
Responds to rapid changes in input level for precise and stable signal transmission.
RX-V4A Product Information
V4A – 5.2 ch AV receiver with CINEMA DSP 3D, HDMI™ 4-in/1-out, wireless surround.
- 5.2 Channel powerful surround sound
- Wi-Fi, Bluetooth®, AirPlay 2, Spotify Connect and MusicCast multi-room audio
- Dedicated gaming function(ALLM,VRR,QMS,QFT) via FW update
- Voice control with Alexa and Google Assistant devices. *Availability varies by region
- MusicCast Surround capable – add MusicCast 20 or MusicCast 50 speakers to create wireless surround sound
- HD Audio with CINEMA DSP 3D
- YPAO™ sound optimisation
MOVIES AND GAMES LIKE NEVER BEFORE
Provides deeper contrast and more realistic images that stay true to the creators’ intent.
Enables a higher refresh rate, giving you a smoother and more realistic viewing experience.
Gaming-dedicated Functions (ALLM,VRR,QMS,QFT)*
Ensures seamless motion and transitions to enhance your performance.
HDMI Multiple Input with Latest Technology*
Multiple HDMI input will equally support the latest HDMI technology to allow next-gen gaming consoles
can be connected at the same time.
*These functions are available via future update.
SIMPLE TO SET UP, SIMPLE TO USE
Explore the power of multi-room audio, access your sources and streaming devices, and control your AV receiver, all through your smartphone.
AV Setup Guide App
Offers expert guidance through installation, cable connections, and various other settings.
Voice Control Systems
Works with Alexa and Google Assistant, so your AV receiver is always at your command. Through AirPlay 2, you can stream your music via voice control operation Siri from Apple iOS device. *Availability varies by region.
MADE FOR YOUR ROOM
Analyzes room acoustics and calibrates audio accordingly to optimize the sound for your space.
Compatible with Wireless Rear Speaker
Gives you the freedom to arrange your rear speakers wirelessly to suit your home décor.
An iconic design built for performance, style, and ease.
RX-V4A – User Guide
75 Hz — 35 kHz
Drive Unit Complement
1 x 4″ C-CAM mid-range driver
1 x 1″ pivoting Gold Dome tweeter
Power Handling (RMS)
Recommended Amplifier Requirements
25 — 50 W
Dimensions (Including Frame (H x W x D))
289 x 289 x 77.5 mm (113/8 x 113/8 x 3″)
Depth From Wall
77.5 mm (3″)
2.76 kg (6 lbs)
Rear ported bass reflex cabinet
Lower Frequency Limit
30 Hz (-6 dB)
Variable 50 – 120 Hz @ 24 dB/Octave
100 W RMS
Class D with Switch mode PSU
Bass EQ Profiles
Music / Movie / Impact
0 – 180°
Input Level Requirements
Standby after approximately 15 minutes if no signal is sensed
Drive Unit Complement
1 x 10″ MMP II long-throw driver
>20 K ohms
Mains Input Voltage
110 – 120 Vac – 50 – 60 Hz
220 – 240 Vac – 50 – 60 Hz. Selectable
110 – 120 VAC – T4AL/250VAC
220 – 240 VAC – T4AL/250VAC
2 x Stereo RCA, 1 x LFE RCA connection
12 V trigger (3.5 mm mono mini-jack)
External Dimensions (Including Grille and Feet (H x W x D))
336 x 320 x 350.6 mm (131/4 x 125/8 x 1313/16“)
Standby Power Consumption
<0.5 W standby
10.54 kg (23 lb 4 oz)
Channel – 5.2
Rated Output Power (1kHz, 1ch driven) – 115 W (6 ohms, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch driven) – 80 W (6 ohms, 0.06% THD)
Maximum Effective Output Power (1kHz, 1ch driven) – 145 W (6 ohms, 10% THD)
High Slew Rate Amplifier – Yes
Surround Sound Processing
CINEMA DSP – Yes
DSP Programs – 17
Dialog Level Adjustment – Yes
Virtual Presence Speaker – Yes
SILENT CINEMA / Virtual CINEMA DSP – Yes
Dolby TrueHD – Yes
Dolby Digital Plus – Yes
DTS-HD Master Audio – Yes
File Format – MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 192 kHz / 24-bit, WAV / AIFF: up to 192 kHz / 32-bit, DSD: up to 11.2 MHz
Pure Direct – Yes
Compressed Music Enhancer – Yes
Adaptive DRC (Dynamic Range Control) – Yes
Initial Volume & Maximum Volume Setting – Yes
Bi-amp capability – Yes
Audio Delay – Yes (0-500 ms)
DA Converter – 384 kHz / 32-bit BB PCM5101A
HDMI eARC – Yes
HDMI Audio Return Channel – Yes
HDMI Pass-through – 8K60B, 4K120AB (via future update)
HDMI Up-scaling – Yes up to 4K
Dolby Vision – Yes
HDR 10+ – Yes (via future update)
VRR/ALLM/QMS/QFT – Yes (via future update)
MusicCast Surround – Yes
HDMI Input/Output – 4 / 1
HDMI CEC – Yes
USB Input – Yes
Network Port – Yes
Wi-Fi – Yes (2.4 / 5 GHz)
AirPlay 2 – Yes
Bluetooth – Yes (SBC / AAC)
Front AV Input – USB
Digital Audio Input/Output: Optical – 1 / 0
Digital Audio Input/Output: Coaxial – 1 / 0
Analog Audio Input/Output – 3 / 0
Preout – 0.2-ch
Headphone Output – 1
FM/AM Tuner – Yes (Availability varies by region.)
DAB Tuner – Yes (Availability varies by region.)
On-screen display – Graphical User Interface
SCENE – Yes (4 sets)
App Control – Yes (iPhone / iPad / Android phone / tablet)
Remote Control Unit – Yes
Standby Power Consumption (IR only) – 0.1 W
Auto Power Standby – Yes
ECO mode – Yes
Dimensions (W x H x D) – 435 W x 171H x 377D mm (with antenna up:435 W x 245 H x 377 D mm);17-1/8″W x 6-3/4″H x 14-7/8″D (with antenna up:17-1/8″W x 9-5/8″H x 14-7/8″D)
Weight – 8.8 kg; 19.4 lbs.
