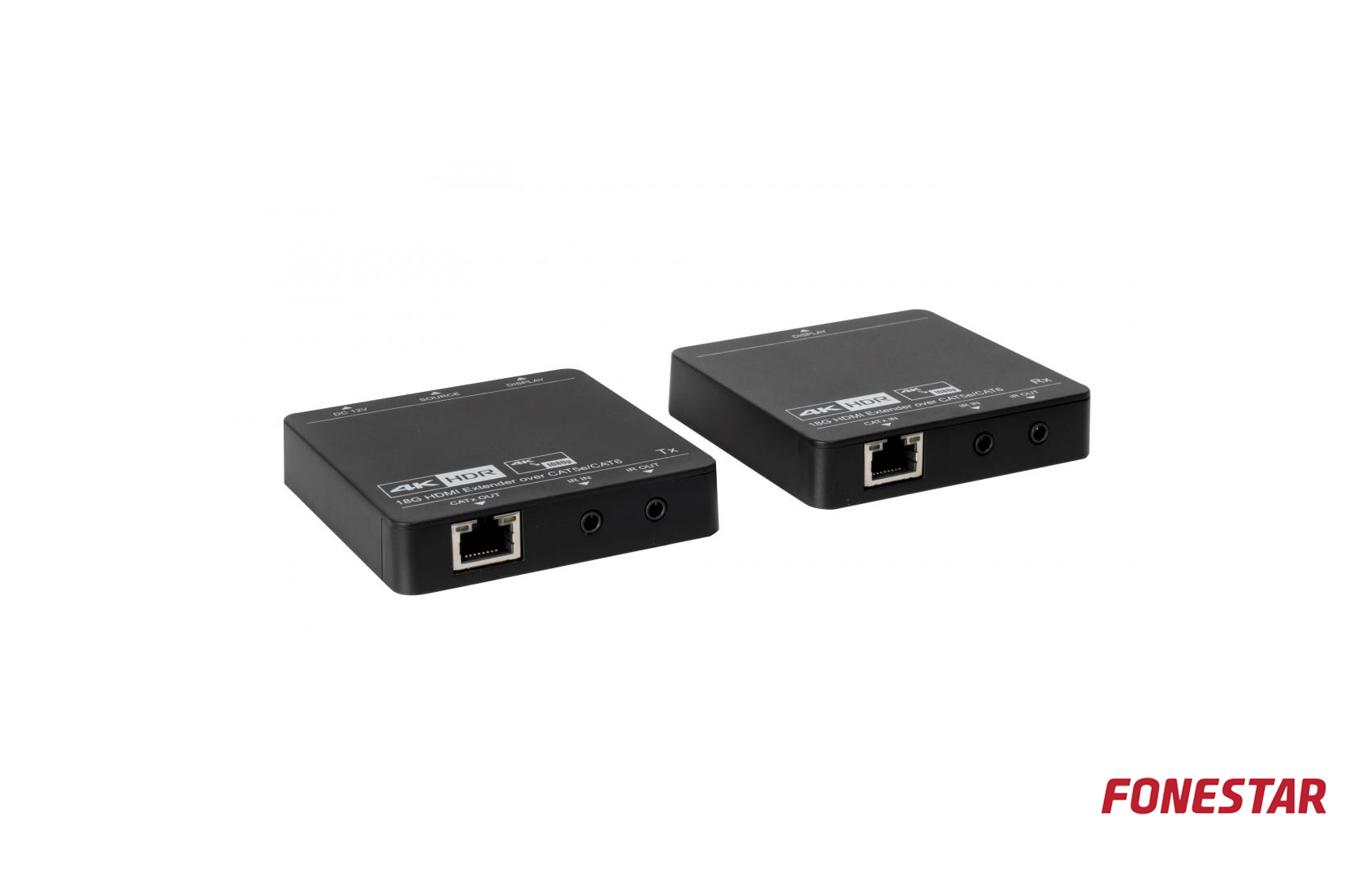

4K UHD HDMI Extender set over CAT6 – Fonestar 7940XT

HDMI extension over Cat 6 cable. Resolution UHD 4K @ 60Hz and lower. Bandwidth 18 Gbps. HDR compatible. HDMI loop output on local TV transmitter. Transmission distance up to 70 m for 4K @ 60Hz and FULL HD 1080p resolutions. DOWN-SCALING function to transform resolutions from 4K to Full HD 1080p. PoC power supply of the receiver via Cat 6 cable. Remote control extension function.

HDMI
2.0

HDCP
2.2 (Bypass or copy)

Time Delay
1ms

Power
Transmitter: 12 V DC, 1A with included adapter
Receiver: PoC

Dimensions
Transmitter and receiver: 80 x 17 x 80 mm depth

Weight
0.2 kg

Note
It is recommended to use Cat 6 cables of good quality and with FTP / SFTP shield.The cables must have shielded connectors with the shield of the cable connected to the shield of the connector, in this way the reliability of the HDMI extenders is improved, avoiding ground loops produced by interconnect devices (player / receiver and TV) with different ground reference that can cause loss or cut in the image
